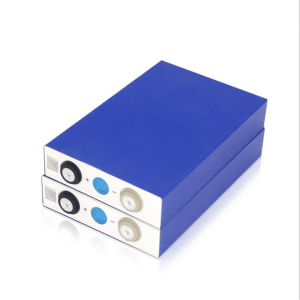

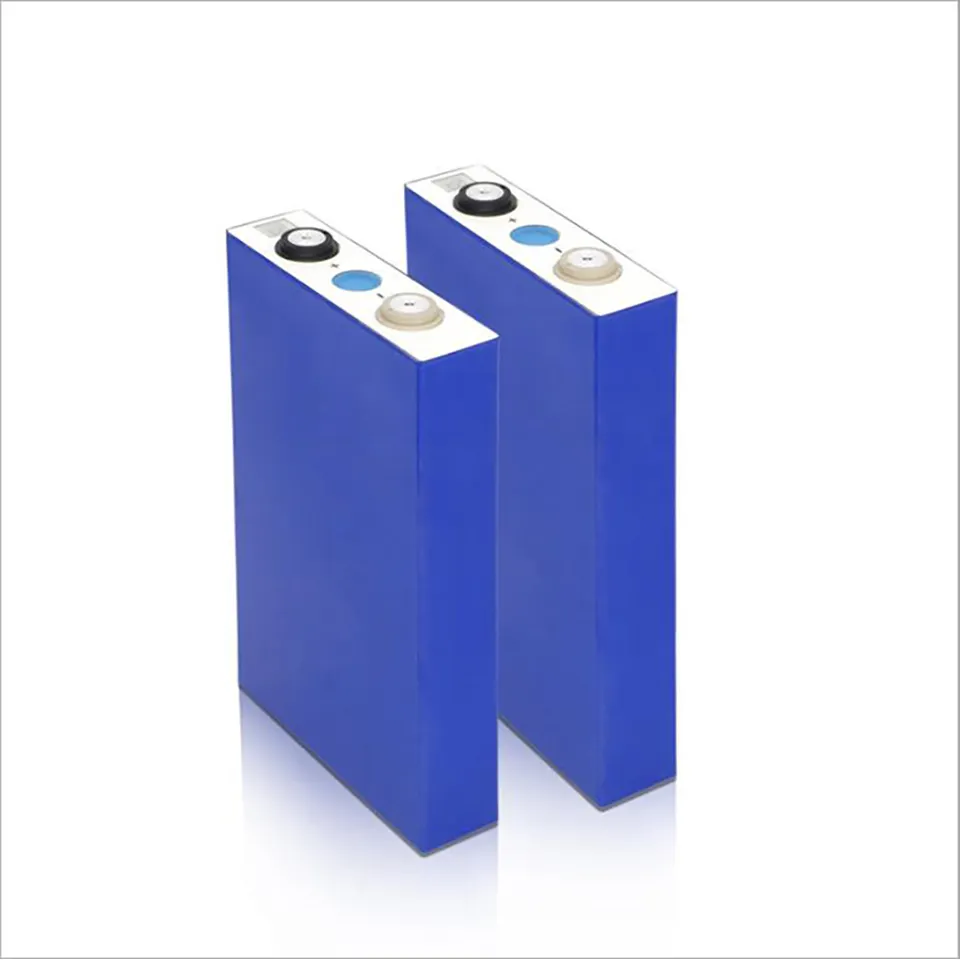

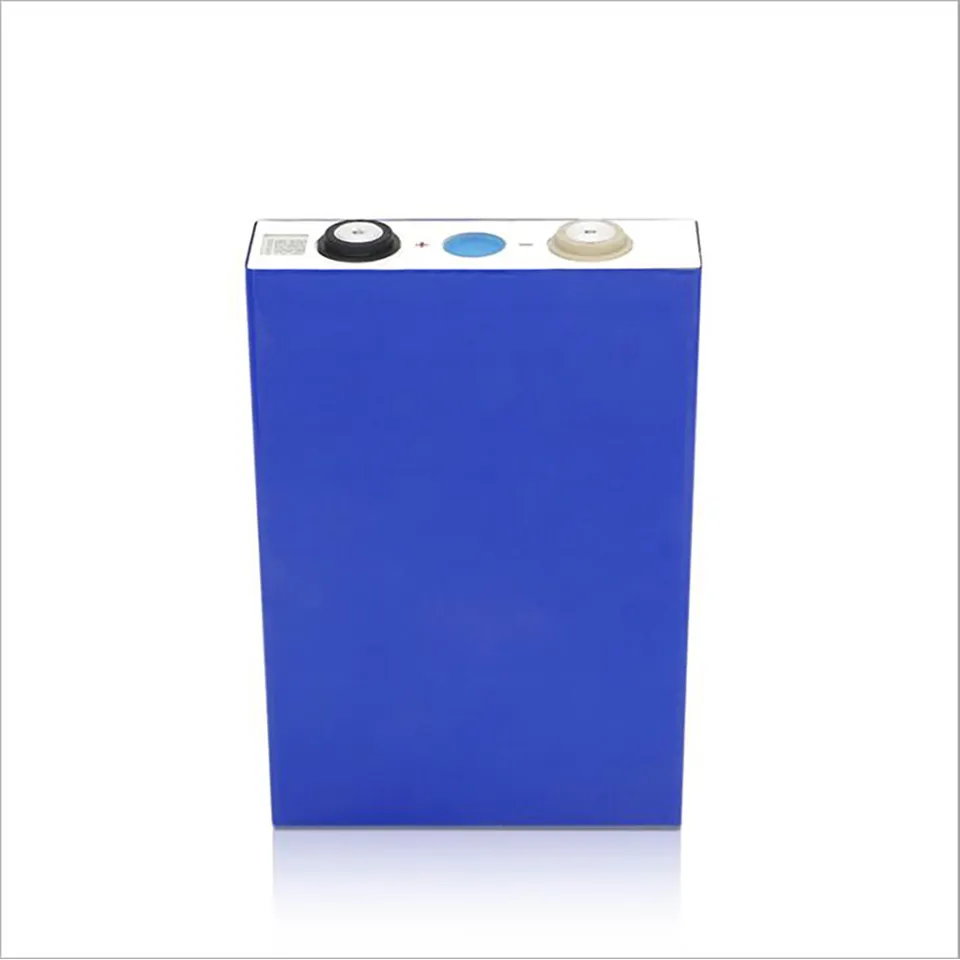

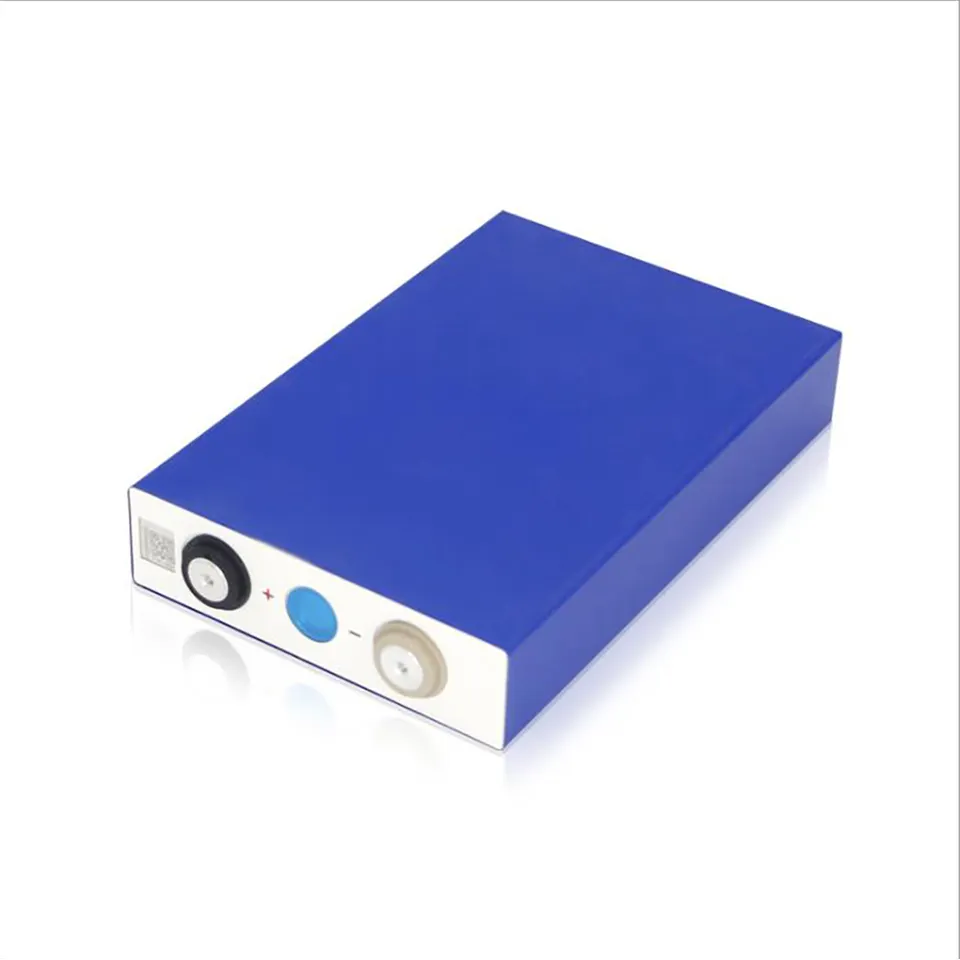

Prismatic Lifepo4 Battery 3.2V 90Ah

2023-06-13 02:44

Specification

#	Item			Parameter	Remark
1	Nominal Capacity			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2V
3	AC Impedance Resistance(1KHz)			≤0.5mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	Charging Temperature			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	Discharging Temperature			-20°C~55°C
9	Storage Temperature		Short Term ( Within 1 month)	-20°C~45°C	N.A
			Long Term ( Within 1 year)	0°C~35°C
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	Dimension		Width	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36.7±0.5mm
14			High( Total)	200.5±0.5mm
15			High（ Subject）	195.5±0.5mm
16			Tabs Distance	67.0±1.0mm
17	Battery Weight			1994±50g

Attentions

• It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
• Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
• Do not short connect or install the battery with incorrect polarity at any time.
• Do not mix up with cells from different models or manufacturers.
• Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
• Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
• Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

Application

Our Factory

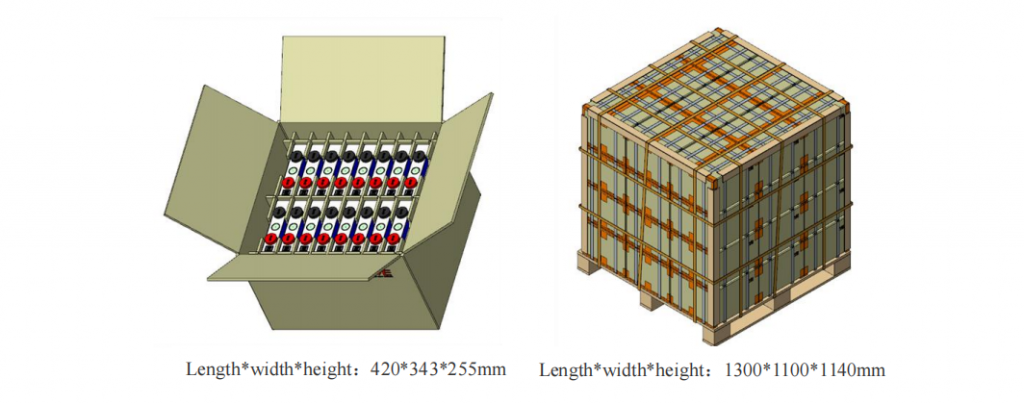

Packing And Shipping

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

Storage

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.

FAQ

Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:3 year warranty
