Model | AIN Battery | |||
Battery Type | LiFePO4 | |||
Battery Module | AIN4860 | AIN48100 | AIN48150 | AIN48200 |
Battery capacity(Ah) | 60 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power (kw) | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight (Kg) | 40 | 53 | 70 | 83 |
Dimension (H*W*D, mm) | 700*580*210 | |||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp. Range (℃) | -20~50 | |||
Calendar Life (Cycles) | 6000@25℃,80% DOD | |||
Nominal Voltage (V) | 51.2 | |||
Protection Level | IP54 | |||
Communication | CAN / RS485 | |||
Warranty | 10 Years | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CEC Accredited | |||
Monitoring & Protection | Each module have BMS , breaker embedded in system | |||

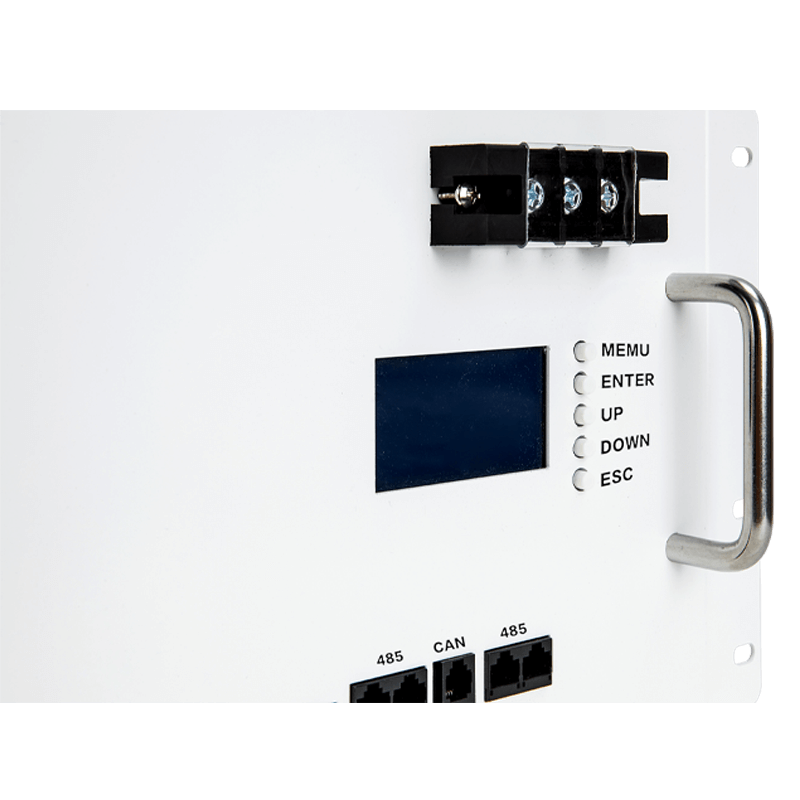

HMI | LCD / touch screen |
Features
Our Factory
Our main products is Lithium Ion Batteries. Now we can offer Home EneBattery Pack,Lithium Battery 24V 48V energy Storage, Telecom Battery, etc.
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
The samples will be ready for delivery in 3~5days after we receive the payment.
Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.
1. Official cooperative supplier of China State Grid Official
2. Withprofessional product development team
3. Rich experience in wireless computer room
4. With superior energy storage solution
Do not worry about that. If you can’t reach MOQ for each item, we suggest you refer to our goods in stock and group sourcing items. We also can send you the latest list of the prompt goods for your reference.
