ALL IN ONE Ni-MH Battery Specifications
| Specifications | |||
| Nominal Voltage | 1.2V | ||
| Energy Density | 115Wh/kg | ||
| Max Discharge Rate | 20C | ||
| Committed Minimum No. Of discharge | 300times with 0.5C discharge rate(IEC standard is 500 times with 0.2C discharge | ||
| Regular Battery Storage Temperature | 0°C to 40°C | ||
| Discharge Temperature | -20°C to 60°C | ||
| Charging Environment Temperature | <40°C | ||
| Operating Temperature | |||
| Product Series | Nominal | High Temperature | Low Temperature |
| Charging Standard | 0°C to 40°C | 0°C to 70°C | 0°C to 40°C |
| Charging (Quite Charge) | 0°C to 40°C | 0°C to 70°C | 0°C to 40°C |
| Discharge | -20°C to 50°C | 0°C to 70°C | -40°C to 50°C |
| Storage | -20°C to 30°C | -20°C to 30°C | -20°C to 30°C |
| Cell Testing | |||
| Product Series | Nominal | Low Temperature | High Temperature |
| Low-temperature | -20°C, 0.2C discharge to 1.0V/cell ≥180min | -40°C, 0.2C discharge to 1.0V/cell ≥180min | 0°C, 0.2C discharge to 1.0V/cell ≥180min |
| High-temperature | 40°C, 0.1C charging 16h,0.2C discharge to 1.0V/cell ≥180min | 70°C, 0.1C charging 16h,0.2C discharge to 1.0V/cell ≥180min | 40°C, 0.1C charging 16h,0.2C discharge to 1.0V/cell ≥180min |
Our Advantages
ALL IN ONE High Discharge Rate NiMH Battery
Our Nickel Metal Hydride Batteries offers up to 2 times the C-rate of same standard of same size standard Nickel Cadmium Batteries. Due to their higher discharge rate and energy density features, users can use on more powerful equipment and applications.
ALL IN ONE offers are variety of NiMH Battery Cells with wide temperature ranges. These Cells provide new electrode development which allows for a wide temperature range and long life.
ALL IN ONE High Discharge Rate NiMH Battery
• Safety and Reliability
• No Memory Effect
• Quick Charge Capability
• Longer Cycle Life
• Compatible to any size(AAA,AA,C,D and 9V)
• Environmental Friendly
• Uniform Temperature Performance
• Longer Cycle Life
• High Tolerance to overcharging
Ni-MH Applications
NiMH battery technology is tried, tested and proven to be suitable for a variety of commercial and industrial applications, Its safety and reliability credentials are unparalleled in the market.
• Consumer Electronics

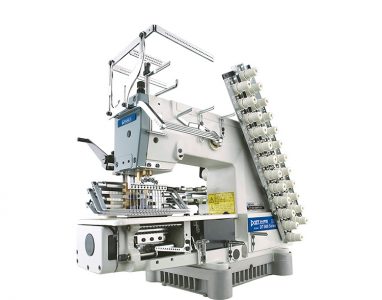

• Industrial Applications

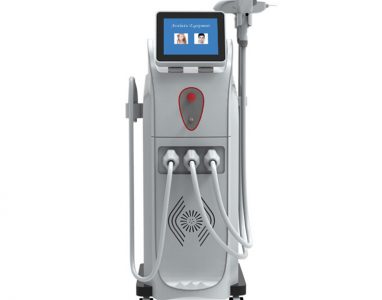

• Medical Equipment

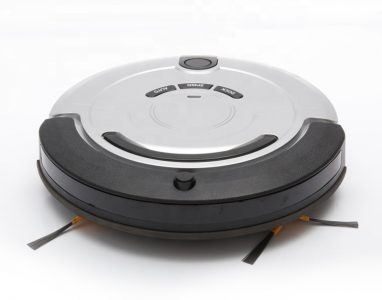

• Home Appliances
• Toys
• R/C Hobby

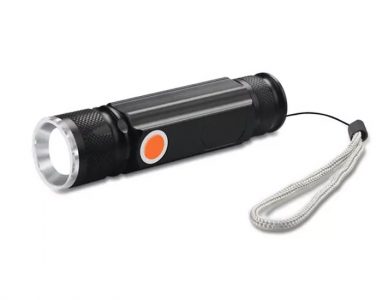

• Lighting Equipment
• Power Tools
• Personal Care
• Healthcare
• Automotive
• Digital Cameras
Nickel Metal Hydride Batteries List
| Series | Item | Nominal Voltage | Diameter | Height | Weight |
| AAAA Series | AAAA300 | 1.2V | Φ7.8 | 42.2-0.4 | 6.8±0.3 |
| AAA Series | AAA230-AAA950 | 1.2V | Φ10.0 | 21.0~44.45-0.4 | 5.5~12.3±0.3 |
| AA Series | AA300-AA2500 | 1.2V | Φ11.2~14.3 | 16.6~50.4-0.4 | 8.0~29.6±0.5 |
| A Series | A650-A3700 | 1.2V | Φ16.6 | 28.0~66.6-0.4 | 15.8~52.6±0.5 |
| Power A Series | A800-A3300 | 1.2V | Φ16.6~17.0 | 26.0~66.6-0.4 | 17.0~52.0±0.5 |
| 18 Series | 18 3200-4500 | 1.2V | Φ18.0 | 66.8~71.8-0.4 | 55.0-63.5±0.5 |
| SC Series | SC1300-4600 | 1.2V | Φ21.9~22.8 | 32.6~43.6-0.4 | 30.8~69.0±0.1 |
| C Series | C2250-6200 | 1.2V | Φ25.2 | 29.3~62.3-0.4 | 21.8~69.0±1 |
| D Series | D3500-16000 | 1.2V | Φ32.2 | 34.6-90.0-0.5 | 75.5~246±2 |
