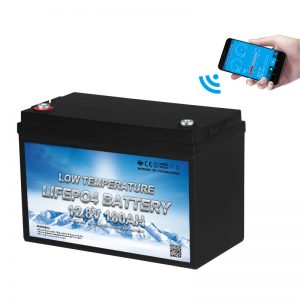

Low Temperature LiFePO4 Battery 12V 100AH

2020-08-11 06:40

Low Temperature lithium battery 12V 100ah lifepo4 battery for cold weather with bluetooth

Model	LFP100-12	LFP200-12	LFP300-12
Nominal Voltage(V)	12.8	12.8	12.8
Nominal Capacity(Ah)	100	200	300
Usable Capacity(Wh)	1280	2560	3840
Dimension(mm)	330175215	485175240	520268220
Weight(Kg)	11	25	30
Cycle Life	≥4000 @ 25℃	≥4000 @ 25℃	≥4000 @ 25℃
Working Temperature ℃	-20~55	-20~55	-20~55
Discharge Voltage (V)	12.8	12.8	12.8
Charge Voltage(V)	13.5~14.6	13.5~14.6	13.5~14.6
Internal Impedance(mΩ)	≤20	≤10	≤10
Charge / Discharge Current (A)	charge:50	charge:40	charge:60
Charge / Discharge Current (A)	Charge:50	discharge:40	charge:60
Design Life(Years)	10	10	10

Main Features
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 3000 cycle times.
3. Max discharge continuous current 175A, peak 320A.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. IP65 Waterproof ratings.

Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection

Bluetooth Function

LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also builted with bluetooth function allow you to read battery status freely anytime.

Self-heated Function

To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
