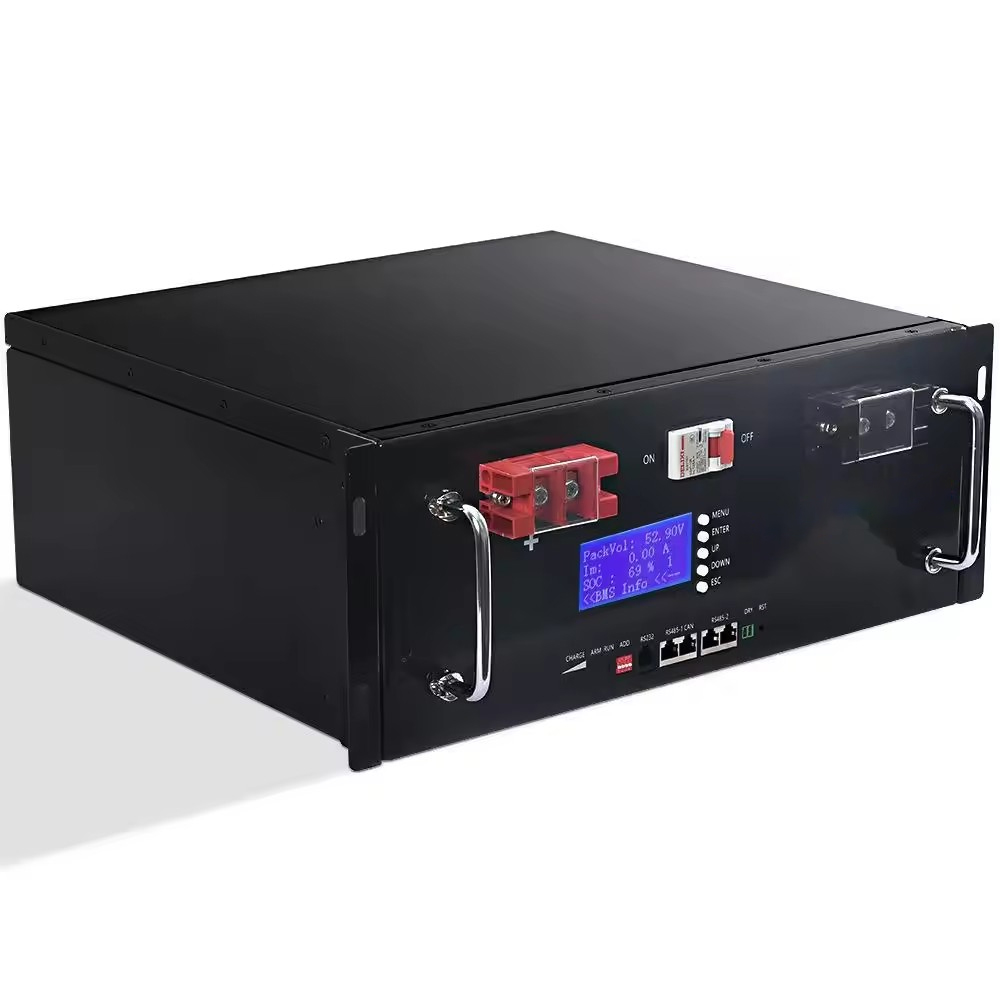

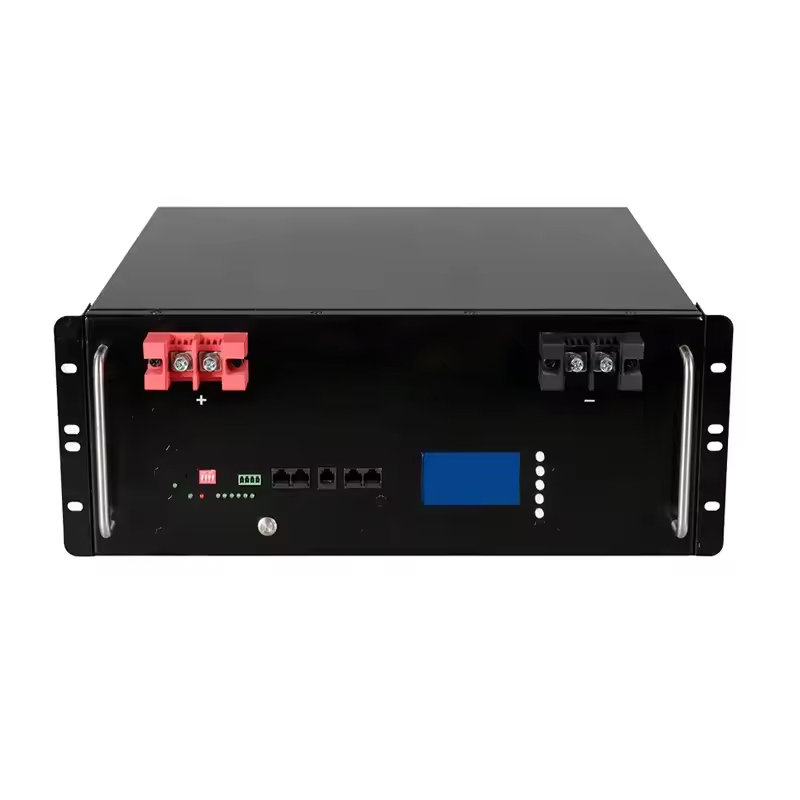

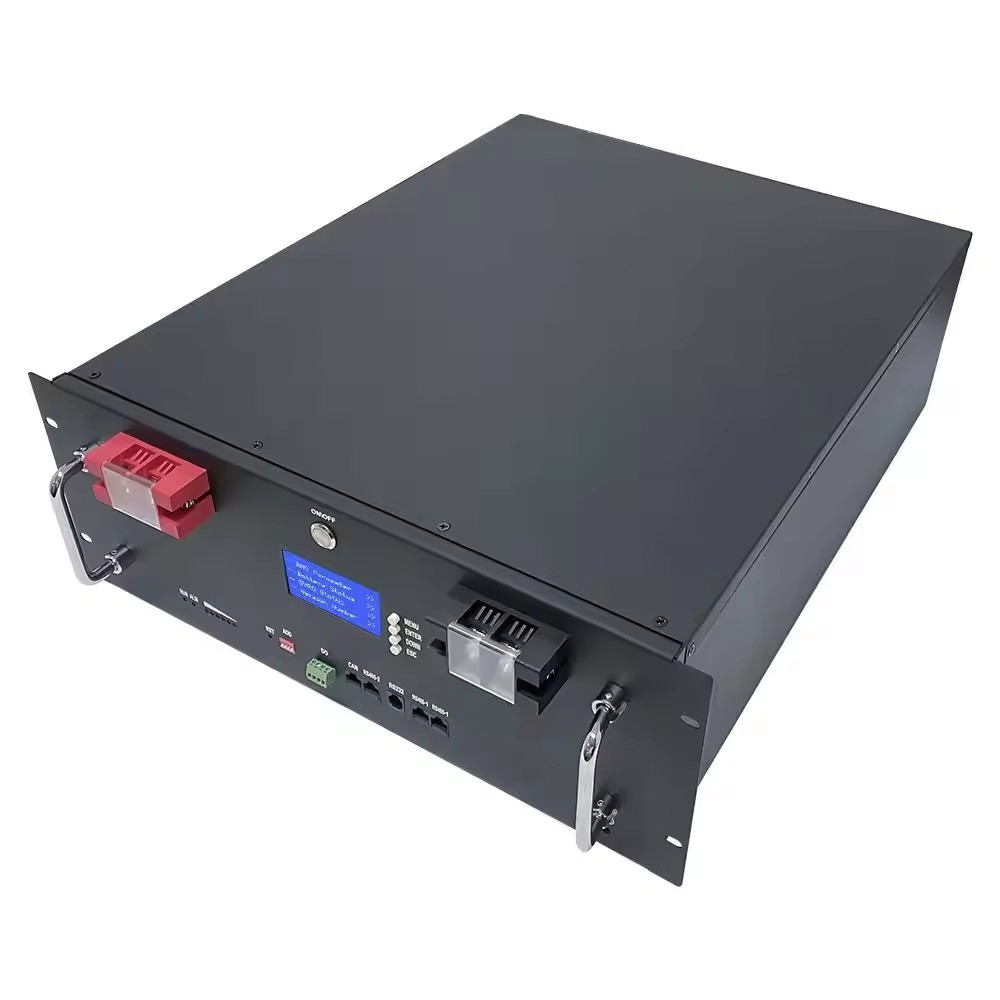

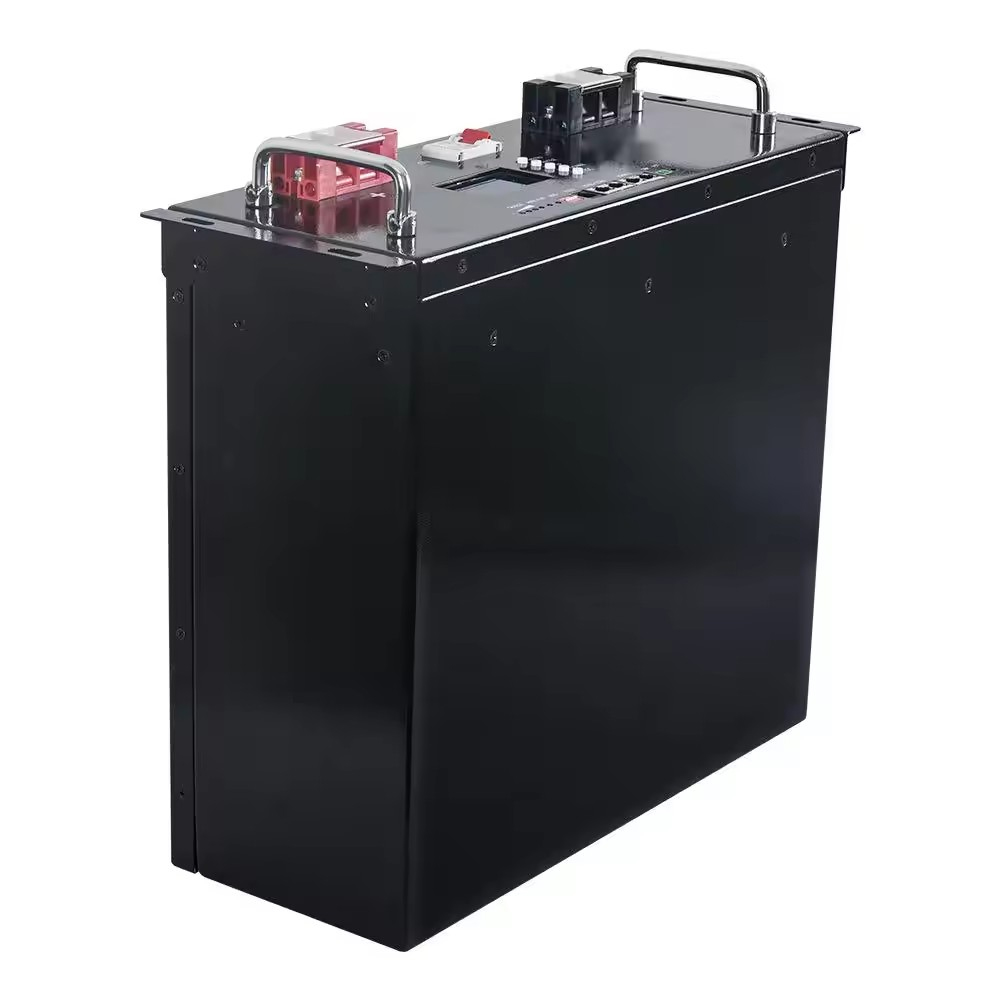

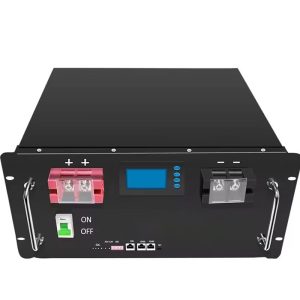

Lithium Ion solar battery 51.2v 100ah 200ah 300ah

2024-08-27 11:02

Product Description

Nominal Voltage51.2V51.2V51.2V
Nominal Capacity100Ah230Ah304AH
Energy5120Wh11776Wh15360wh
Series or Parallel Connection16S1P16S1P16S1P
Maximum Charge Current100A200A200A
Charge Current (-20 to - 10 ºC)≤0.05C≤0.05C≤0.05C
Recommended Charge Voltage56V-57.6V56V-57.6V56V-57.6V
BMS Charge Voltage Cut-Off57.6V (3.75±0.025vpc)57.6V (3.75±0.025vpc)57.6V (3.75±0.025vpc)
Reconnect Voltage54.6V (3.34 ±0.05vpc)54.6V (3.34 ±0.05vpc)54.6V (3.34 ±0.05vpC)
Dimensions (L x W x H)440*435*222mm (17.3x17.1x8.74”)480*248*618mm475*255*770mm
Weight70KG with wooden packing:116KG with wooden packing138KG with wooden packing
Communication InterfaceRS485 (Optional)RS485 (Optional)RS485/CAN (Optional)
Case MaterialMetalMetalMetal
Enclosure ProtectionIP54IP54IP54
Maximum Continuous Discharge Current100A200A200A
BMS Discharge Current Cut-Off105A230A230A
Reconnect Voltage45V45V45V
Discharge Temperature-20 to 60ºC (-4 to 140 ºF)-20 to 60ºC (-4 to 140 ºF)-20 to 60ºC (-4 to 140 ºF)
Charge Temperature0 to 45ºC (32 to 113 ºF)0 to 45ºC (32 to 113 ºF)0 to 45ºC (32 to 113 ºF)

* Please Click Here:We Provide OEM /ODM Service !
* Quick Delivery From China.
We are committed to making the safest lithium iron phosphate batteries.
All of our batteries have undergone rigorous testing and are certified safe for use in applications around the world.
All lithium batteries in our sales comply with CE, UN38.3,MSDS and other transportation regulations, quick delivery from spot!
If you need product related certificate, please contact us to send to you!
* For additional benefits For resellers

we provide super price for you and policy, We offer one-stop solar energy storage solutions,please contact us directly and we will tell you more. Most importantly, we can provide you with professional solutions tailored to your local market.



Products Feature

1.Excellent safety performance: Safest lithium iron phosphate battery, CE BIS, MSDS, UN38.3 approved, with built-in BMS.

2.Long cycle life and deep cycle: Performs more than 6000 cycles, 6-8 times longer than lead acid battery.

3.No memory effect, highly efficient and high energy density.

4.Compact size and light weight: 1/2 size & weight of lead acid battery

5.Excellent high temperature performance

6.Low self-discharge rate: < 3% per month

7.High IP standard: IP65 Waterproof.



Application

Our Factory



Shipping And Packing

FAQ

Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, ALL IN ONE do not have MOQ limit, 1pc sample order or small quantity is available.

Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.

Q3. How do you ship the goods? How about the Shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.

Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly.
Secondly, confirming the order and do the deposit for it, then we will arrange the production.

Q5. Is it available to print my logo on the product?
A: Yes. For OEM Demand please send us your logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.



Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
