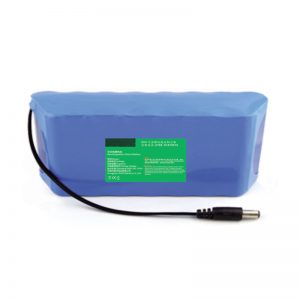

Lithium Battery Packs 18650 10.8V11000mAh

2020-08-24 09:12

Specification

NO	Item	Standard	Remark
1	Model	AIN1906-011
2	Cell Specification	ICR18650/2200mAh/3.6V
3	Battery pack	18650-3S5P-11000mAh-10.8V
4	Rated Capacity	11000mAh	Customizable
5	Min Capacity	9900mAh
6	Energy	122.1Wh
7	Nominal Voltage	10.8V	Customizable
8	Voltage Before Shipment	≥11.4V
9	Inner Resistance	≤150mΩ
10	Charging Voltage	12.6±0.2V
11	Floating Charging Voltage	12.65±0.2V
12	Standard Charging Current	2200mA
13	Max Charging Current	5500mA
14	Standard Discharging Current	2200mA	Customizable
15	Max Discharging Current	5500mA	Customizable
16	Peak discharge current	20000mA/0.1s
17	Terminate Voltage	8.25V
18	Size	Length 150±1 mm	Customizable
		Wide 75±1 mm	Customizable
		Thickness 40±1 mm	Customizable
19	Weight	Around 850g±0.5g
20	Output Way	5.5DC Female socket UL2468/22#，Wire Length 150mm	Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharge Rate	The Residual Capacity：≤3%/Month; ≤15%/Year
22	Self-discharge Rate	Recoverable Capacity ： ≤1.5%/Month; ≤8%/Year
23	Storage Environment	Less Than 1 Month：-20～+35℃、45～75%RH
		Less Than 3 Months：-10～+35℃、45～75%RH
		Recommended Storage Environment ：15～30℃、45～75%RH
24	Warranty	12 Months
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 11.5V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Industrial supporting, laser and other fields Main Features: 1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;

Payment and Shipment:

1) We accept Paypal,T/T,Western Union or L/C .

2) Full order timeline about 7-10 working days after payment or deposit conform.

3) Shipping: DHL,Fedex TNT(only to certain area).

4) Tracking Number will be provided

After-sale services:

1) One year warranty

2) Rapid replacement of defective until you are satisfied

3) Reply you within 24hours

4) Any non-intentional damage will be repaired free of charge

Why choose lithium ion battery?

Lithium ion is the battery technology of today.

Do you want to be the fasted or best performing?

Do you want to save energy or burn less fuel?

Do you want your investment to last longest?

Do you want to be’out there’ longest without getting anxious about your energy?

Then lithium ion is your choice of batteries.

A few of its outstanding featuers

Space and weight savings up to 70%

Longer lifespan of traditional batteries

Extremely fast charging and discharging.

High efficiency,not wasting energy.

Safe operation.

FAQ

Q: Are you trading company or manufacturer?
A: We are an original factory.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new oe as replacement.

Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal and so on.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
