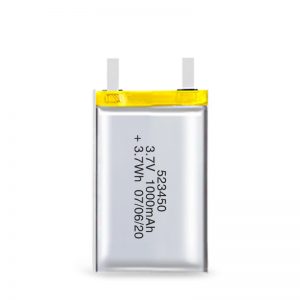

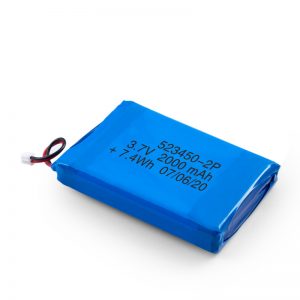

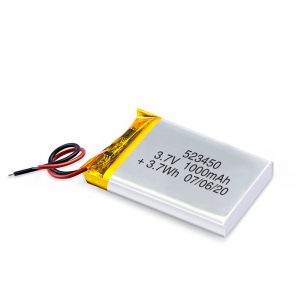

LiPO Rechargeable Battery 523450 3.7V 1000mAH/ 7.4V 1000mAH/3.7V 2000mAH

2020-08-10 10:35

Item			Rating	Note
3.1 Capacity		Typical	1000mAh	Discharge:0.2CmA cut off Voltage:3V for cell
		Minimum	950mAh
3.2 Nominal Voltage			Average 7.4V	Discharge:0.2CmA cut off Voltage:3V for cell
3.3 AC Impedance Resistance			≤240mΩ
3.4 Discharge Cut-off Voltage			6.0V
3.5 Charge Current			200mA	Standard Charge
3.6 Charge Voltage			8.4V
3.7 Max. Charge Voltage			8.46V
3.8 Charge Time			Approx 6.0h	Charge: 0.2CmA
3.9 Max. Charge Current			1000mA	1.0CmA
3.10 Continuous discharge Current			2000mA	2.0CmA
3.11 Pulse. discharge current			4000mA	4.0CmA (PULSE≤1min)
3.11 Weight			Approx 42.5g
3.12 Operating Temperature	Charge		0~+55℃
	Discharge		-20~60℃
3.13 Storage Temperature	less than 1 month		-10~35℃	Recommended storage temperature: 20℃,at the shipment state
	less than 3 month		-10~25℃

FAQ

1,Q: What's the main product in ALL IN ONE?

A: Rechargeable battery. nimh battery and Li-ion, Lipo battery and power battery pack.

2,Q: What is overcharge?

A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode. Observe changes in battery appearance.

3,Q: What is over discharge?

A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance

4. Q: Can I have a sample order?

A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5. Q: Do you have MOQ limit?

A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

6. Q: How about the lead time?

A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.

7. Q: How about shipping and delivery time?

A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.

8. Q: What about after-sale service?

A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!

Categories: Normal Size LiPO Battery
