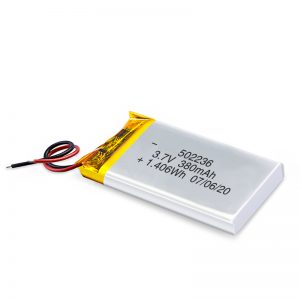

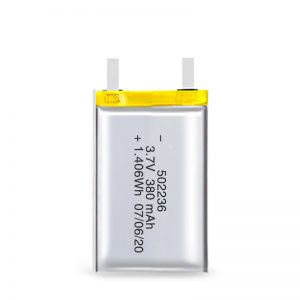

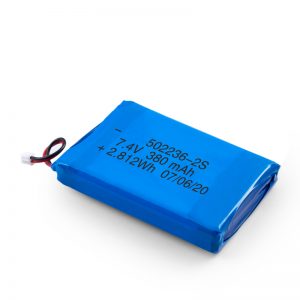

LiPO Rechargeable Battery 502236 3.7V 380mAH/3.7V 760mAH /7.4V 380mAH

2020-08-10 10:00

Specification

Specification
502236 Basic Information	Dimension( thicknesswidthlength)	5.222.536(mm)
	Charge voltage	4.2V
	Nominal voltage	3.7V
	Nominal capacity	365mAh
	Fully charge voltage	4.2v
	Ship out volatge	3.85-4.1v


Battery specification	Charge current	Standard Charging:0.5C (182.5mA)
	Charge current	Rapid charge:1.0C(365mA)
	Charging method	Charge with constant current 0.5c to 4.2V, then chagre with constant voltage 4.2v till until charge current is less than 0.01C
	Standard discharge current	0.2C(73mA)
	Max.discharge current	1C(365mA)
	Discharge cut-off voltage	3.0v
	Operating enviroment	Charging:10℃~45℃
	Operating enviroment	Discharging:-10℃~60℃
	Storage temperature	-10℃~45℃
	Cell Weight	Approx: 7.3g
	Battery recyle time	500 times
	Warranty	12 months

Related LiPO Battery

Model	Capacity	Normal Voltage	Dimension Max(mm)
Model	mAh	V	Thickness	Width	Length
AIN603450	1000	3.7	6.0	34.3	50.0
AIN703484	1000	3.7	7.0	30.5	48.5
AIN903040	1000	3.7	9.0	30.5	40.8
AIN902745	1100	3.7	9.0	27.0	46.0
AIN802260	1150	3.7	8.0	22.5	60.0
AIN503759	1200	3.7	5.10	37.5	59.5
AIN703448	1200	3.7	6.95	34.3	48.5
AIN853048	1200	3.7	8.50	30.3	48.5
AIN703450	1300	3.7	7.0	34.5	50.5
AIN703943	1300	3.7	7.0	39.5	43.0
AIN943045	1350	3.7	9.40	30.5	46.0
AIN593562	1400	3.7	5.90	35.3	62.8
AIN653560	1400	3.7	6.50	35.5	60.5
AIN454261	1500	3.7	4.60	42.5	60.8
AIN473686	1550	3.7	4.50	36.5	86.5
AIN504654	1500	3.7	5.20	46.5	54.5
AIN704050	1600	3.7	7.10	40.3	50.3
AIN883650	1650	3.7	8.70	36.3	50.0
AIN524561	1700	3.7	5.20	45.2	61.8
AIN703860	1800	3.7	7.0	38.5	60.5
AIN103254	1900	3.7	10.0	32.0	54.0
AIN555462	2000	3.7	5.50	54.0	62.5
AIN803465	2000	3.7	8.15	34.5	65.5
AIN455085	2100	3.7	4.70	50.5	85.5
AIN953759	2200	3.7	9.70	37.5	59.5
AIN923460	2300	3.7	9.20	34.0	60.0
AIN605068	2400	3.7	6.00	50.5	68.5
AIN546162	2500	3.7	5.45	61.0	62.0
AIN605085	3000	3.7	6.60	50.5	85.5
AIN855085	4000	3.7	8.50	50.3	85.0

This is part of our products. In addition, we can customize the size and capacity of polymer batteries. Welcome to contact us for more information

FAQ

1,Q: What's the main product in ALL IN ONE?

A: Rechargeable battery. nimh battery and Li-ion, Lipo battery and power battery pack.

2,Q: What is overcharge?

A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode. Observe changes in battery appearance.

3,Q: What is over discharge?

A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance

4. Q: Can I have a sample order?

A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5. Q: Do you have MOQ limit?

A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

6. Q: How about the lead time?

A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.

7. Q: How about shipping and delivery time?

A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.

8. Q: What about after-sale service?

A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!

Categories: Normal Size LiPO Battery
