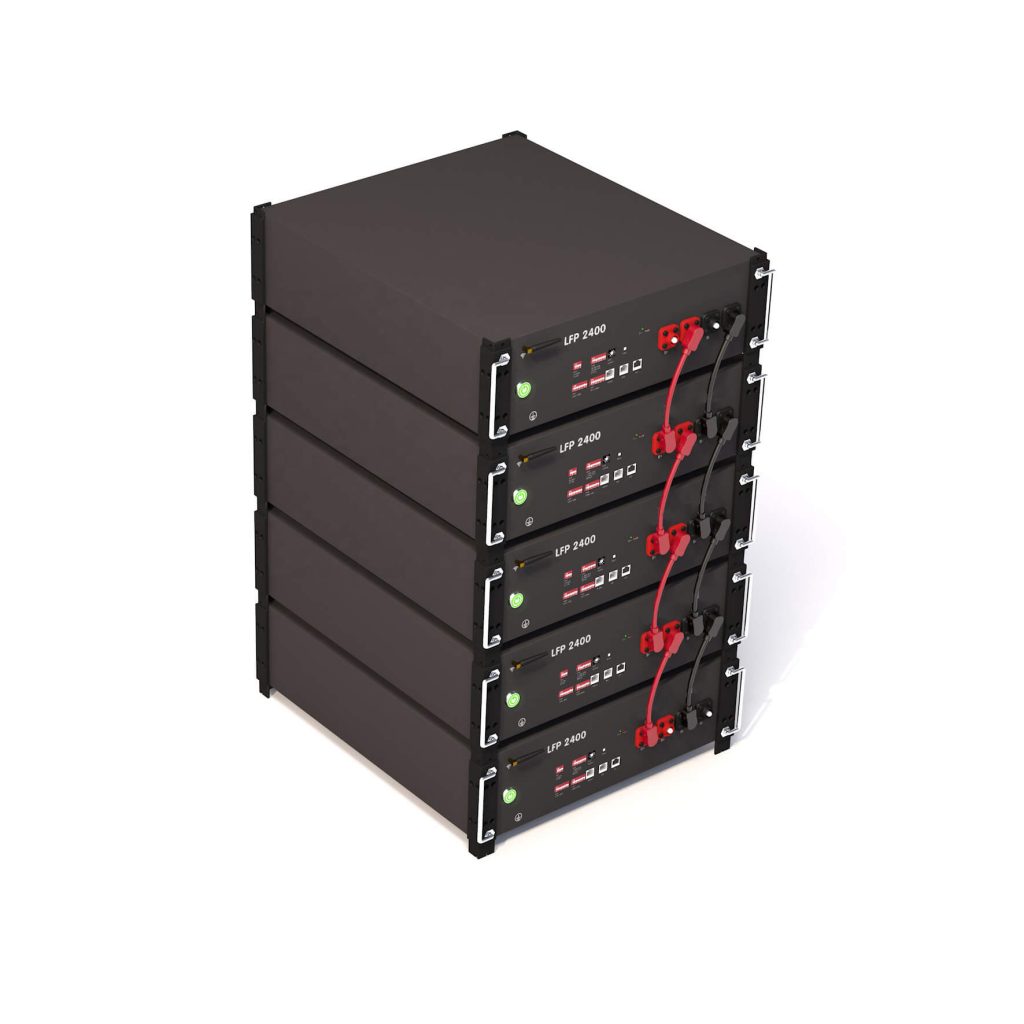

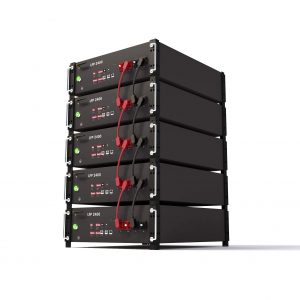

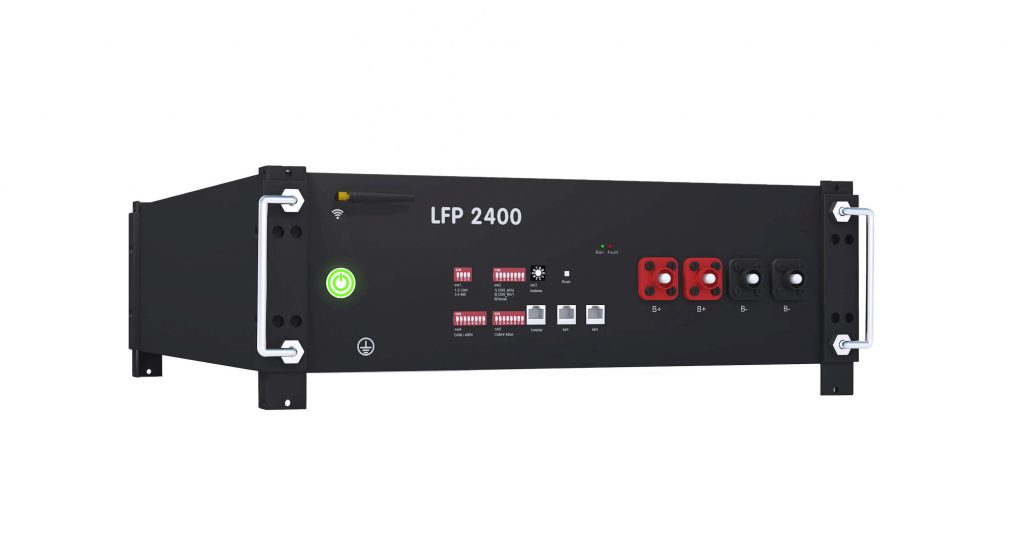

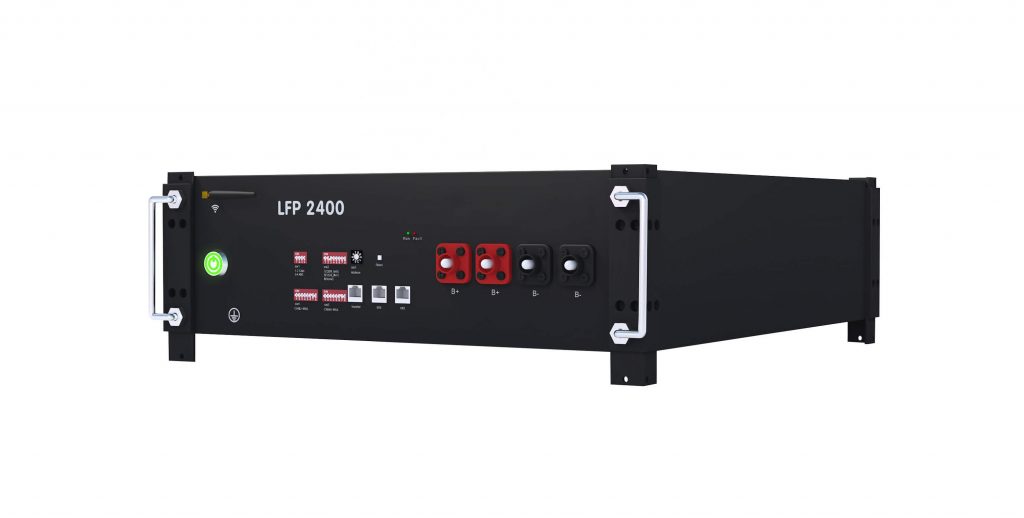

LiFePO4 power wall lithium battery 48V 200ah 10kwh powerwall for home solar system

2021-09-10 05:52

Technical specifications

Model	AIN-LFP 2400
Total Energy	2.4kWh
Usable Energy(d.c)	2.2kWh
Nominal Charge/Discharage Power	1.2kW
Peak Power(Only discharge)	3.5kW for 3 seconds
Constant Current(Only discharge)	40A
Voltage	48-56Vd.c
Norminal Voltage	51.2Vd.c
Norminal Current	30A
Max.Charge Voltage	57.6V
Recommended DOD(Cycle Life)	90%(>6000)
Operating Condition	Indoor
Operating temperature (charge)	From 0~45℃
Operating temperature (Discharge)	From -10~55℃
Dimension(mm)	442500133
Weight	27.5kg
Humidity	20~60%(No condensed water)
Over Voltage Category	Ⅱ
Cooling Type	Natural Cooling
Case Material	Metal
Installation	Cabinet or Wall mounting
IP rating	IP20
Protective Class	Ⅰ
Max.Number of Parallel or Series	8
Warranty	10 years
Communication	CAN/RS485
Protection Mode	Triple hardware protection
Battery Protection	Over-current/Over-voltage/Short circut/Under-voltage/Over temperature

Longer Service Life Low maintenance batteries with stable chemistry. Easily monitor state of charge(SoC) of smart models.

Built in Circuit protection Battery Management Systems(BMS) are incorporated against abuse.

Better Storage Up to 6 months thanks to its extremely low self discharge(LSD) rate and no risk of sulphation.

Quickly Recharge Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Our Factory

Packing&Shipping

All products will be packaged with strong box and pallet during transportation .

We also accept OEM/ODM and customized packaging service .

FAQ

Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:10 years warranty.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
