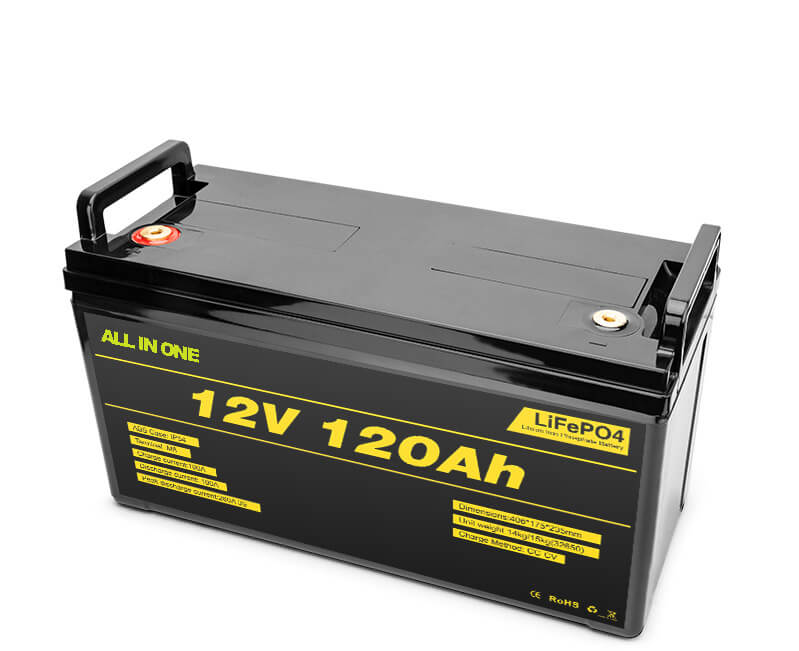

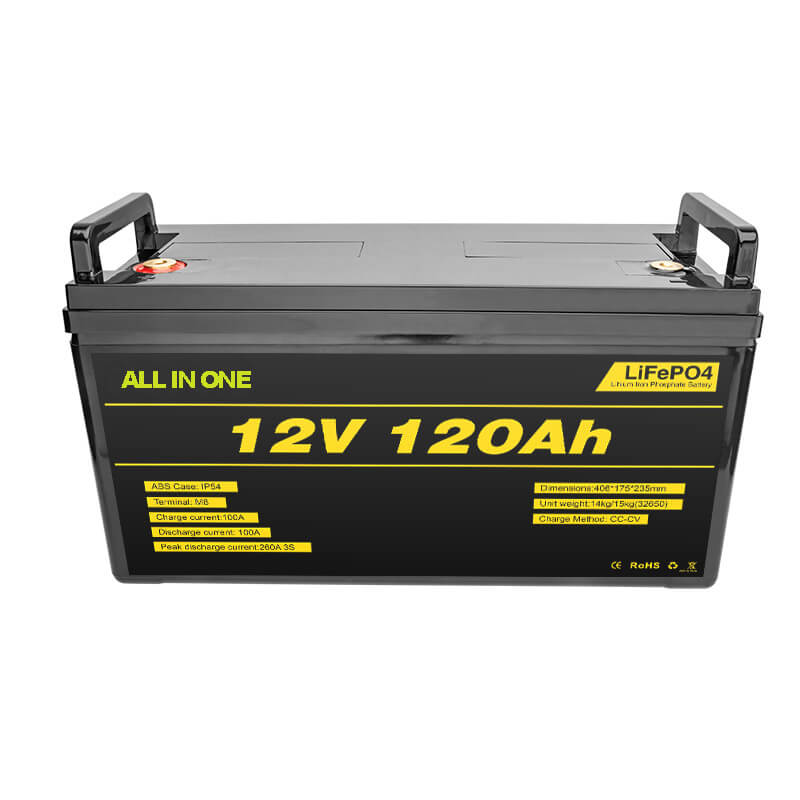

Lifepo4 BMS Lithium Battery Pack 12v 120ah Lifepo4 Lithium Ion Battery 12v

2021-05-11 10:23

Product Paramenters

Specification	Parameter	AIN12100
Nominal	Voltage	12.8V
Nominal	Capacity	120Ah
Physical	Dimension	175225406mm
Physical	Weight	14KG
Electrical	Charge Voltage	14.6V
	Discharge Voltage	10V
	Constant charge Current	100A
	Peak discharge current	100A
Others	Working Temperature	-20-65℃
	Storage Temperature	0-45℃
	Cycle Life	>4000 Cycles

Product Advantage

◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.

Our Factory

Application

◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting

Products are widely used in Mountain power generation,Communication base,Street light etc.

Related LiFePO4 Battery Packs

Packing And Shipping

FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?

A:3 year warranty.
