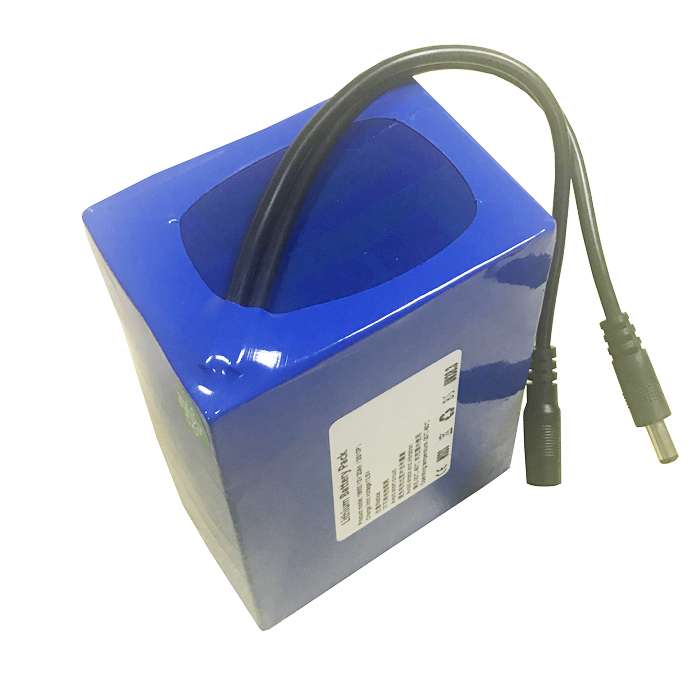

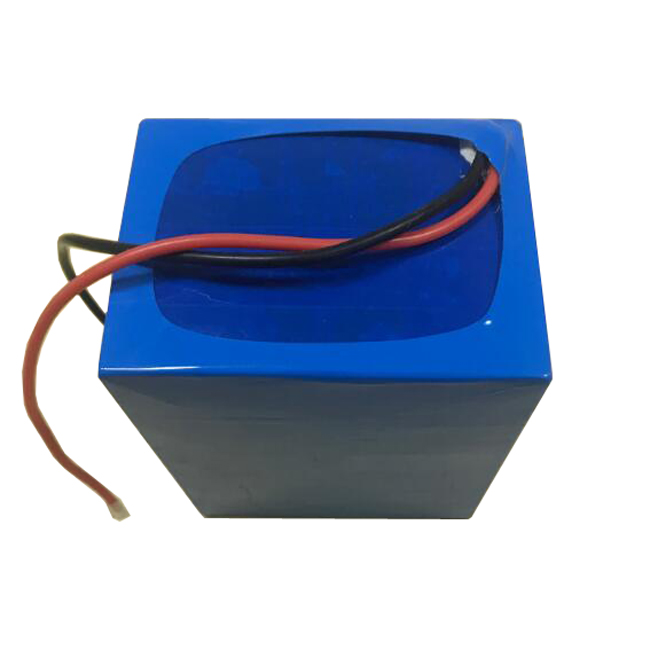

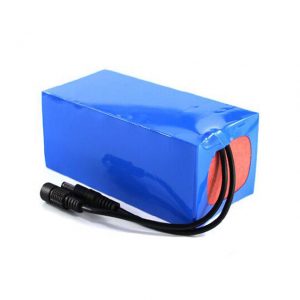

Li-ion battery 12V 20Ah lithium battery pack

2020-10-27 01:59

Specification

Specifications
NO.	Item	Specifications
1	Item Name	12V 20Ah
2	Model Number	AIN12-20
3	Nominal Voltage	11.1V
4	Nominal Capacity	20Ah
5	Overcharge Protection Voltage	12.6V
6	Over discharge Protection Voltage	9.0V
7	Maximum Charge Current	≤20A
8	Continuous Discharge Current	≤20A
9	Pulse Discharge Current	≤20A
10	Internal Resistance	≤160mΩ
11	Load Capacity	≤240W
12	Service Cycle Life	≥500times
13	Charge Temperature	0°C~45°C
14	Discharge Temperature	-20°C~60°C
15	Storage Temperature	-20°C~35°C
16	Protection Temperature	70°C±5
17	Weight(g)	1350g
18	Dimension (mm)	120*95*70mm
19	Packing	Highland Barley Paper+PVC
20	Characteristic	High Capacity, Light, Long Life, long working time, safe, environment friendly
21	Application	Wireless monitoring equipment, communication equipment, medical equipment, instruments and meters, LED lamps and lanterns, traffic signs, portable small household appliance, power tools, toys, etc.

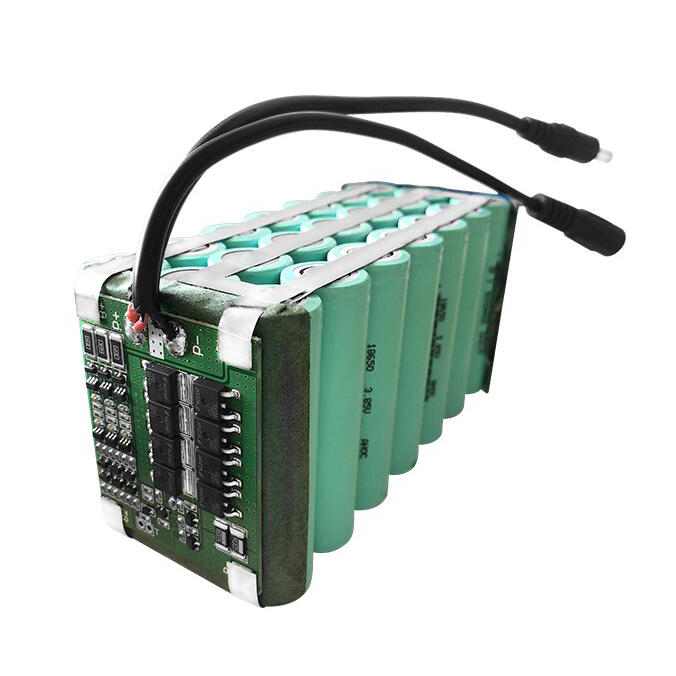

18650 Li-ion Lithium Ion battery:

1.Product Feature and Advance:

(1). Large capacity. 18650 lithium battery capacity is generally between 900mAh - 2600mAh. 18650 lithium battery pack is casually can break through 5000mAh.

(2). Long life. Cycle life can reach more than 500 times.

(3). High safety performance. No explosion, no combustion, no poison, no pollution.

(4). High voltage. Nominal voltage is 3.7v.

(5). No memory effect. Before charging Do not have to discharge the remaining electricity, easy to use.

(6). Small internal resistance. Greatly reduces the battery self power consumption.

2.Product application:

Solar power system, Notebook, walkie-talkie, instrumentation, audio equipment, aero modelling, toys, cameras, digital cameras, LED light, electric tools , robot, GPS, radio, portable source, loudspeaker box, unmanned aerial vehicle, torch, aero modelling and other electronic equipment.

3.Product storage:

Battery storage environment should be clean, dry, ventilated room, should avoid contact with corrosive substances, should be far away from fire and heat source.
