Nominal voltage | 60V | 48V | 52V | 52V | 52V |
Nominal capacity | 40Ah | 30Ah | 10Ah | 20Ah | 30Ah |
Max charge voltage | 67.2V | 54.6V | 58.8V | 58.8V | 58.8V |
Cut-off discharge voltage | 48V | 39V | 42V | 42V | 42V |
Max.continuous discharge current | 15-30A | 15-30A | 15-30A | 15-30A | 15-30A |
Peak current (less than 10s) | 40A | 40A | 40A | 40A | 40A |

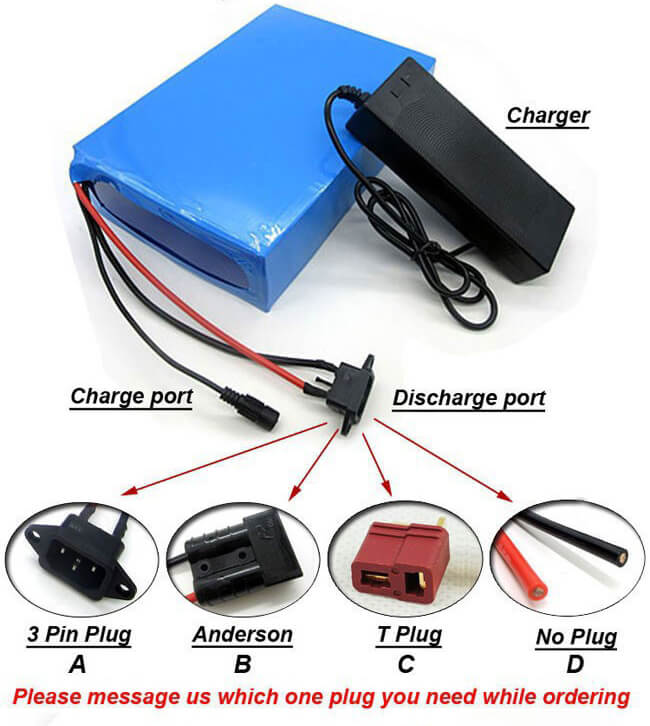

Charger | 67.2V 3A | 54.6V 3A | 58.8V 3A | 58.8V 3A | 58.8V 3A |
Battery Weight | 13Kg | 6.5Kg | 3Kg | 6Kg | 7Kg |
Warranty | 12 Months | 12 Months | 12 Months | 12 Months | 12 Months |
Features

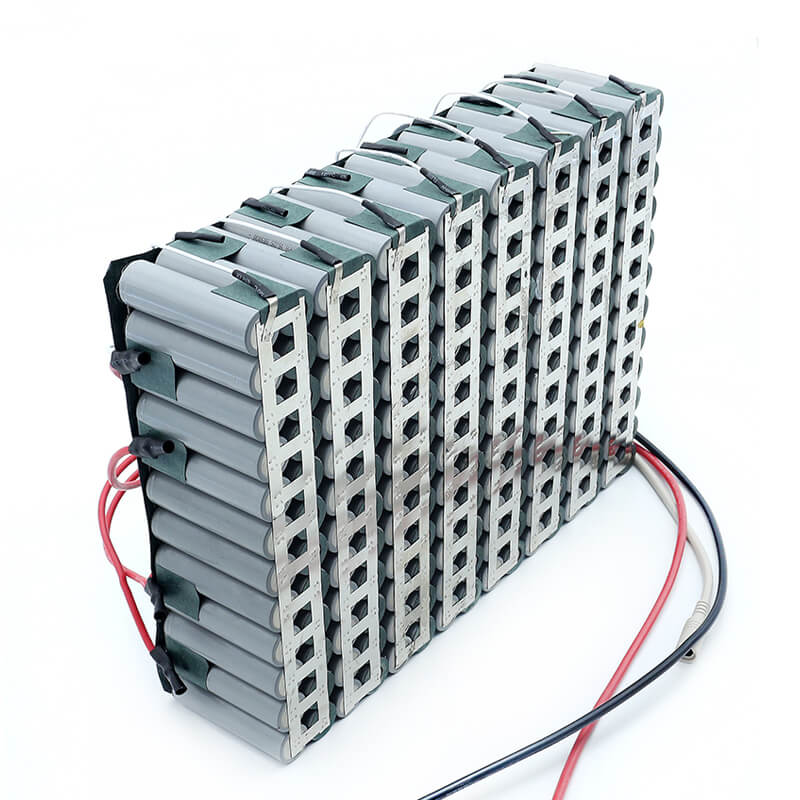

60V battery pack – Li(NiCoMn)O2 18650
High lifespan: About 500-800 cycles @ 100% DOD
Deep discharge allowed up to 100%
BMS Protection ( no thermal runaway, no fire or explosion risks)
Excellent temperature robustness(-20 °C up to +60°C)
Constant power during discharge( very low internal resistance)
Very low Peukert's losses( energy efficiency>96%)
Very low self-discharge(<3% per month)
No memory effect
About 50% lighter and 40% smaller than an equivalent Lead-AGM battery with same usable energy
Related Lithium Battery Packs
Application
Electric Propelling
♦ Engine Starting Battery
♦ E-car, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-sweeper, Floor cleaner,
♦ Intellectual Robots
♦ Power tools: electric drills, toys
♦ 60V 2000W electric citycoco/motorcycle
Our Factory
Packing And Shipping
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8.How about warranty?
A:1 year warranty.
