Specification
ITEMS | 12v 100ah Lifepo4 battery |
Cell ype | LiFePo4 Cells |
Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah |
Protection | BMS (without communication) |
Over Discharge Protection Voltage | 14.6V |
Over Charge Protection Voltage | 10.0V |
Maximum Continuous Discharge Current | 100A |
Maximum Pulse discharge current | 200A (less than 5s) |
Working Temp. Range/℃ | Charge: 0℃~60℃ |
Discharge: -10℃~60℃ | |
Storage Temperature | Less than 1 year: -10℃~25℃ |
Less than 3 months: -10℃~40℃ | |
Less than 30 days: -10℃~45℃ | |
Connector | 300 pure copper connector (can be customized) |

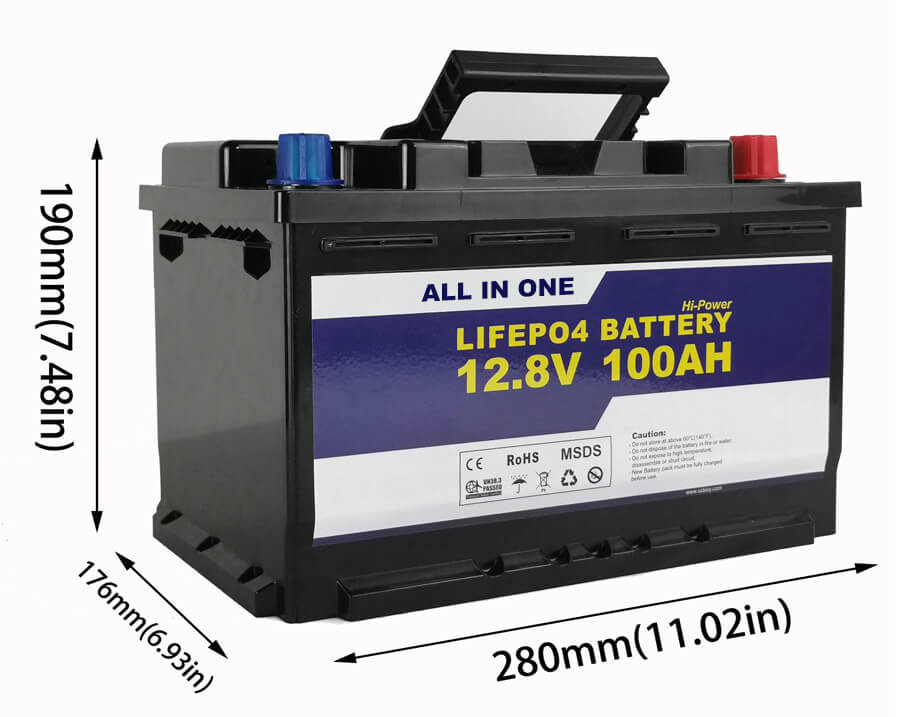

Size(L×W×H)/mm | 305*175*195 (±5) |
Battery pack Weight | 13.5 kg |
Quality Warranty | 3 Years |
The data on the above is our standard matched pack. Size/max continuous discharge current/ max discharge current are adjustable based on customer's detail requirement. Different current needs different BMS, so please specify the charge/ discharge current for moudle customize, also the cost of battery pack would be slightly different based on BMS selection. |
1. A grade LiFePO4 cells with long cycle life
2. BMS built in with over charge, over discharge, over current, over temperature protection etc.
3. Sorting before batteries were assembled, to make sure every single battery pack was assembled by batteries with same Volt, capacity and resistance.
4. An idea choice for solar energy storage, electric scooter, electric boat etc.
5. Perfect to replace lead acid battery
6. Cover the battery with epoxy board before packaging, to protect battery from hit and high temperature. Epoxy board is a flame-retardant material, can prevent battery on fire or explosion.
7.All the battery pack will be cycle aging. Before we put the battery pack in to packing box or next step assembly, we charge and discharge the battery pack to text it's parameters to make sure it can work well.
8. Well trained employee,every employ will be trained for two weeks before he(or she) goes to work at production line, make sure he(or she) can complete every work program accurately. Payment Term: 30% TT in Advance, 70% balance before shipment.
Related LiFePO4 Batteries Our Company
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us.
