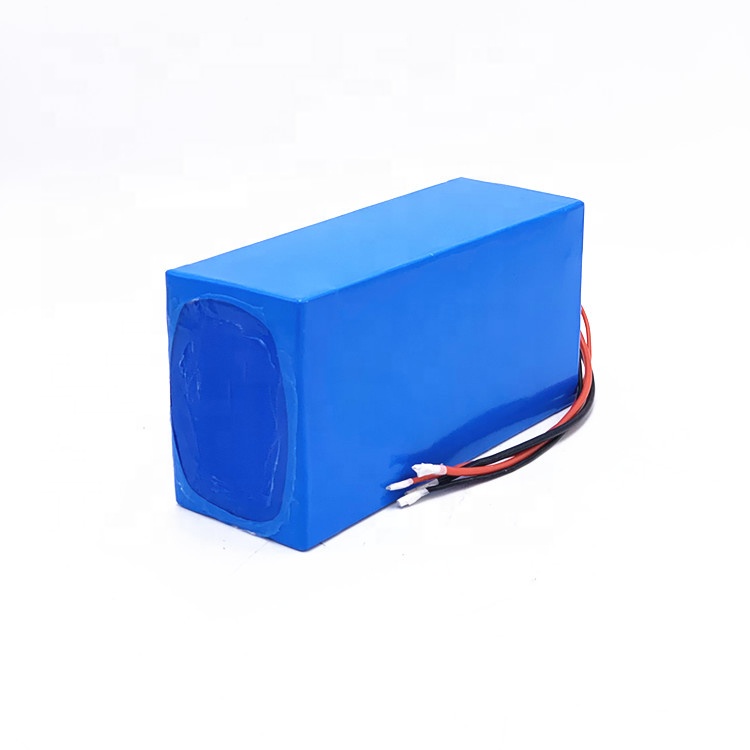

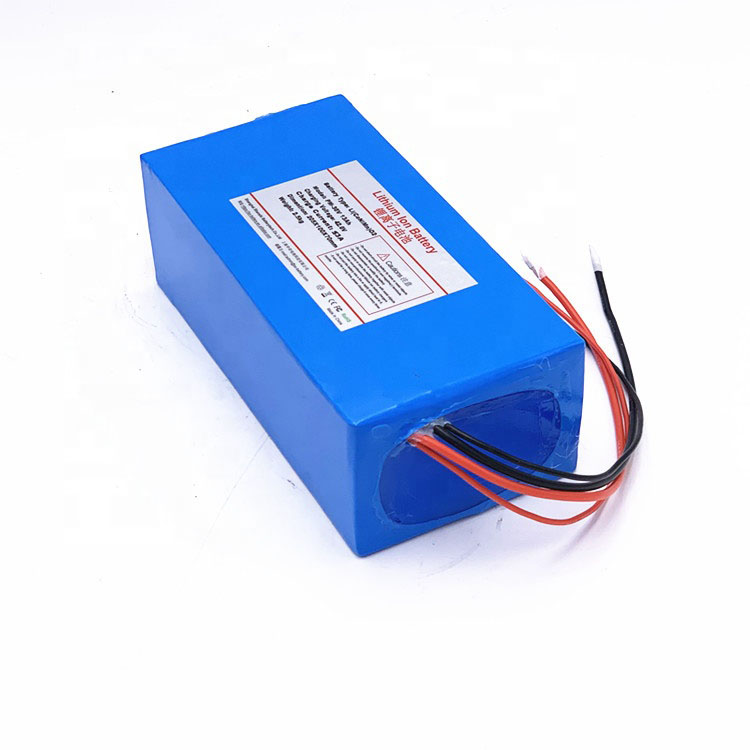

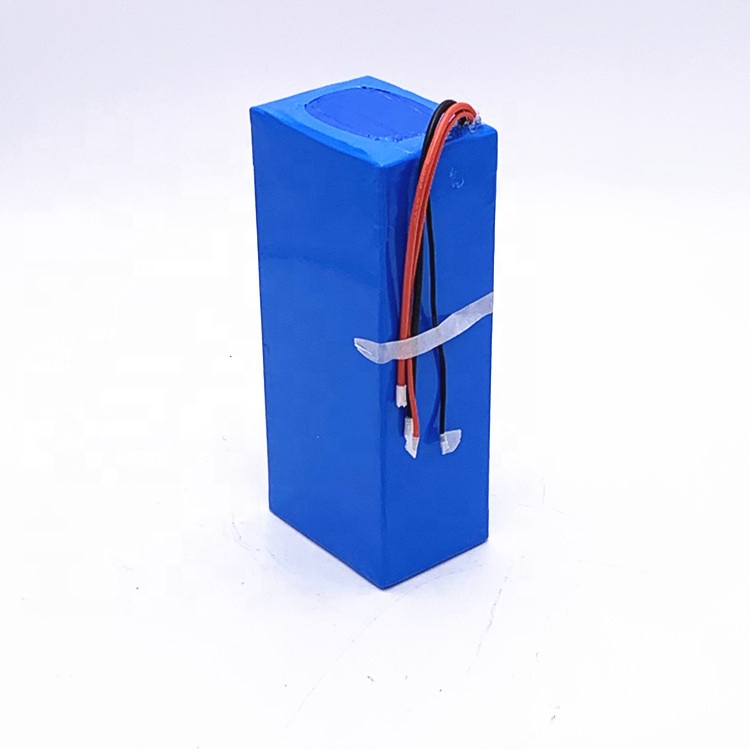

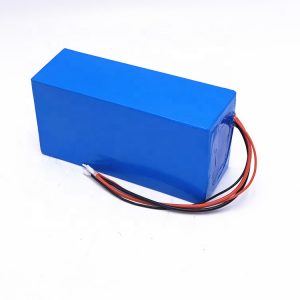

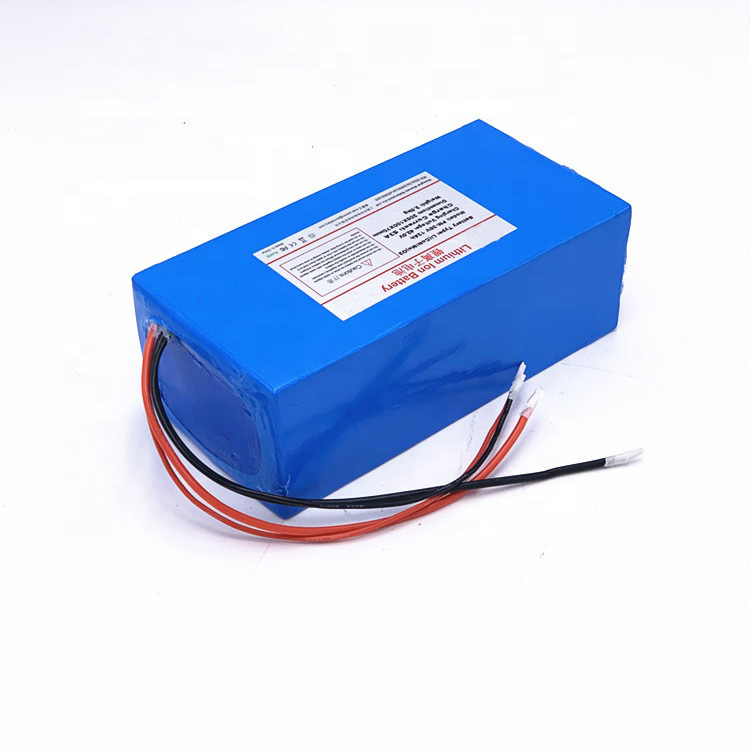

electric bicycles 36v 15ah battery lithium battery 36 v 15ah lithium battery for e bike scooter

2020-10-28 01:22

Product Application

Electric Bike/Bicycle/Motorcycle / Scooter /Wheelchair/Automobile / Golf Cart /tricycle /tricar/ three-wheeler/ three-wheel cart/ trishaw

Solar Storage/Wind Storage

UPS Storage

Medical equipment Back-up or EPS Emergency Power Supply

SPECIFICATIONS FOR  Battery Pack
Model
AIN-36V-15AH
AIN-36V20AH
AIN-36V30AH
AIN-36V40AH
Type
Li ion
Li ion Polymer
Li ion Polymer
Li ion Polymer
Material
Li(CoNiMn)O2
Li(CoNiMn)O2
Li(CoNiMn)O2
Li(CoNiMn)O2
Power
350W
500W
800W
1000W
Nominal Voltage
36.0V
36.0V
36.0V
36.0V
Typical capacity(25℃,0.2C Charge&discharge)
15.6Ah
20Ah
30Ah
40Ah
Charge Voltage(cc/cv)
42.0V
42.0V
42.0V
42.0V
Max. Charge Voltage(cc/cv)
44.0V
44.0V
44.0V
44.0V
Standard Charge Current
0.25C
0.25C
0.25C
0.25C
Max. Charge Current
0.5C
0.5C
0.5C
0.5C
Standard Charge Time
Around 6H
Around 6H
Around 6H
Around 6H
Continue discharge Current
≤1C
≤1C
≤1C
≤1C
Max. Pulse discharge Current
3C
3C
3C
3C
Discharge End Voltage
28.0V
28.0V
28.0V
28.0V
Protection
36V BMS,over-charge/discharge protection, over-heat protection
36V BMS,over-charge/discharge protection, over-heat protection
36V BMS,over-charge/discharge protection, over-heat protection
36V BMS,over-charge/discharge protection, over-heat protection
Cycle life@80% DOD,25℃,0.2C Charge&discharge
≥1000 times
≥1000 times
≥1000 times
≥1000 times
Weight (approximate)
3.2Kg
4.4Kg
6.5kg
8.5kg
Dimension (approximate)mm
L205*W120*H70
L182*W94*145 or L205*W155*H72L235*W155*H160 or L205*W225*H72L235*W195*H170
OperatingTemperature
-20~+60℃
-20~+60℃
-20~+60℃
-20~+60℃
Charge Temperature
0~+50℃
0~+50℃
0~+50℃
0~+50℃
StorageTemperature(Less than 1 month)
0~+45℃
0~+45℃
0~+45℃
0~+45℃
Operating humidity
5% to 90%,non-condensing
5% to 90%,non-condensing
5% to 90%,non-condensing
5% to 90%,non-condensing

Advantages:

1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price& High quality
9, Good consistency, low self discharge
10, Light weight, small size

Application

Related Lithium Batteries

Our Factory


FAQ
Q1:Why choose ALL IN ONE Battery?
1.Quick response to clients' inquiries within 12hrs.
2.Strong R&D capability, all kinds of latest products available.
3.More than 20 years experience in producing battery products for various applications.
4.Value quality and long-term cooperation to reach win-win relationship.
Q2:Are you a Factory or trading company?
We are a factory which is located in Anhui Province
Q3: When will the products be delivered if the order has been placed?
We promise we do delivery our battery in 3-10 days and it will take 12-30 days for the customized items.
Q4: What is your quality control process?
We are certified with ISO-9001, and strictly follow the ISO procedures.We do 100% testing for any of batteries before the order has been delivered.
Q5: What Certificates do you have?
Our batteries have been tested by CE and RoHS Standards which is complied with the European Directive.
Q6: Do you have any sales service?
Yes, we do 1-3 Years Warranty for any of our battery.We keep promise we do full refund for the defective battery.
Q7: What about the payment?
We accept T/T , PayPal and Western Union

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
