E-Bike 36V 15AH Lithium Li-ion Battery for Electric Bike 200W to 500W Motor

2024-05-30 06:38

SPECIFICATIONS
No.	Items	Specifications	Remark
1	Cell type	18650, 2500mAh,3.7V

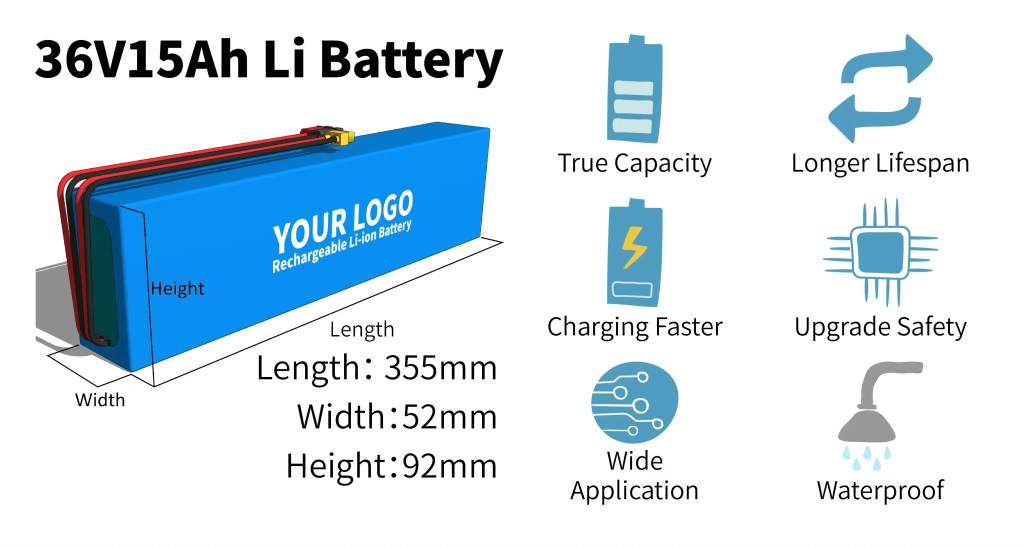

2	Size	355×92×52±2mm	Length×Width×Height
3	Specification	36V15Ah
4	Typical Rated capacity	15Ah	0.2C Discharge
5	Minimum capacity	14.4Ah	0.2C Discharge
6	Energy	540Wh
7	MAX Charge voltage	42±0.2V
8	Standard Charge	5.2A	CC/CV, 0.2C5A, 42V
9	End-of-charge Current	300mA	0.02C5A
10	Standard Discharge	7.5A	CC, 0.5C5A, 28V
11	Maximum charging current	5A
12	Maximum discharge current	20A
13	Discharge cut-off voltage	≥28V
14	Nominal voltage	36V/pack
15	Internal resistant	≤110mΩ
16	Over current protection current	100±10A
17	Temperature range for storage	less than 1 month	-20~45°℃
		less than 6 month	-20~35°℃
18	Operating temperature range	Discharge	-20~50℃
		Charge	0~50℃
19	Cycle Life	≥500 cycles

Our Advantages

Qualified Cells

UL,IEC certified cells with cycle life 3000times and qualified.

Smaller Size & Low weight

Our battery is just 3/4 size of the other supplier standard size.

Excellent Battery Management System

Core components are worldwide famous brand to ensure high accuracy.

Excellent Craft

Neat, tidy and protected wiring to avoid wires dropped. All cells with holder improve heat dissipation to lower down the cell temperature and then prolong life-span.

Quality Control For Battery

Perfect Cells

All from China famous branded cells partners.

Cell Grouping

Strict Cell Grouping standard, all cells from one batch, the difference of Cell Internal Resistance: within 1mΩ, voltage: within 3mv to ensure the pack has best consistency.

Automatic Machinery

Cells are assembled with 3kw fully automatic laser welding machines or high power automatic spot welding machines to ensure quality reliability.

BMS Testing

All BMS are tested, specially to make sure the BMS has low sleeping consumption current.

100% Pack Testing

All battery packs are 100% Fully Tested(Fully Discharge--Fully Charge--Fully Discharge--80% Charged) before package,and all test reports are stored.Unique Tracing No.

Application

Lithium Battery Main Applications
Electric propelling applications	Engine starting battery; Slow Speed Car; Intellectual robots; Electric bicycle/Motorcycle/Scooter; Golf trolley/Carts/ Sightseeing car; Power tools.
Energy storage	solar and wind power system; city on/off grid; community and family, RV Caravan, Marine yachts.
Back-up system and UPS	telecom base, CATV-system, computer server center, medical instrument, military equipment.
Other applications	security and electronics; mobile POS, mining light/torch/LED light/emergency light.

Packing And Shipping



FAQ

1,Q: What's the main product ?

A: Rechargeable battery. Li-ion, Lipo battery and power battery pack.

2,Q: What is overcharge?

A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode. Observe changes in battery appearance.

3,Q: What is over discharge?

A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance.

4,Q: Can I have a sample order?

A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5,Q: Do you have MOQ limit?

A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

6, Q: How about the lead time?

A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.

7,Q: How about shipping and delivery time?

A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.

8,Q: What about after-sale service?

A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
