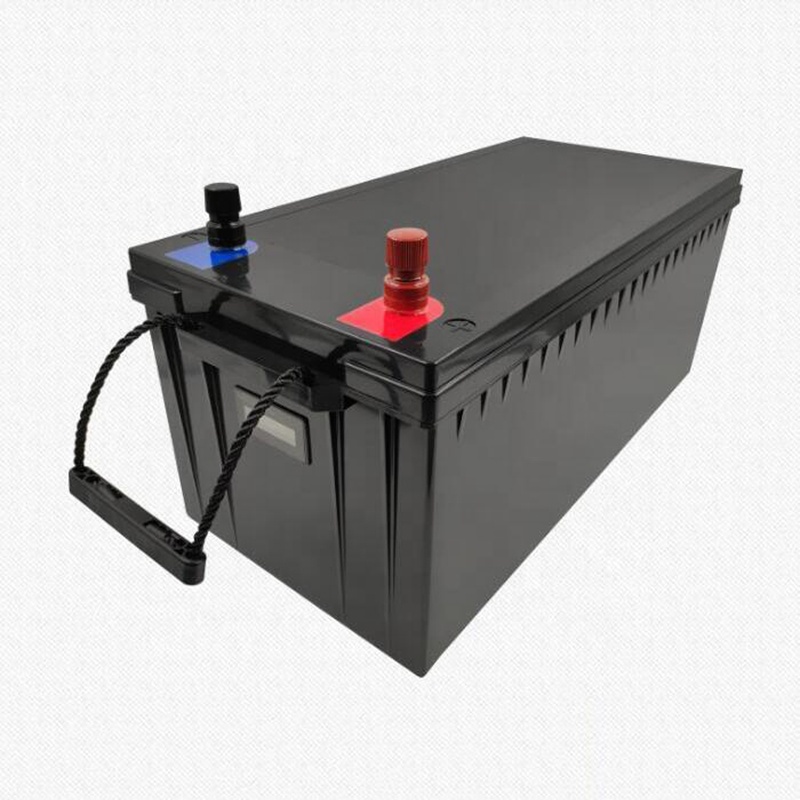

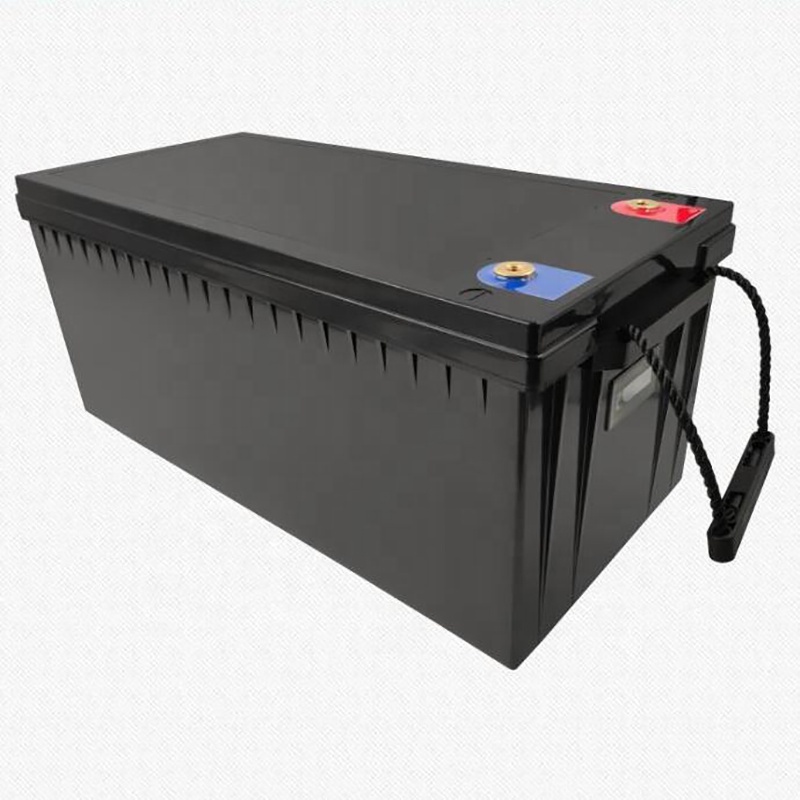

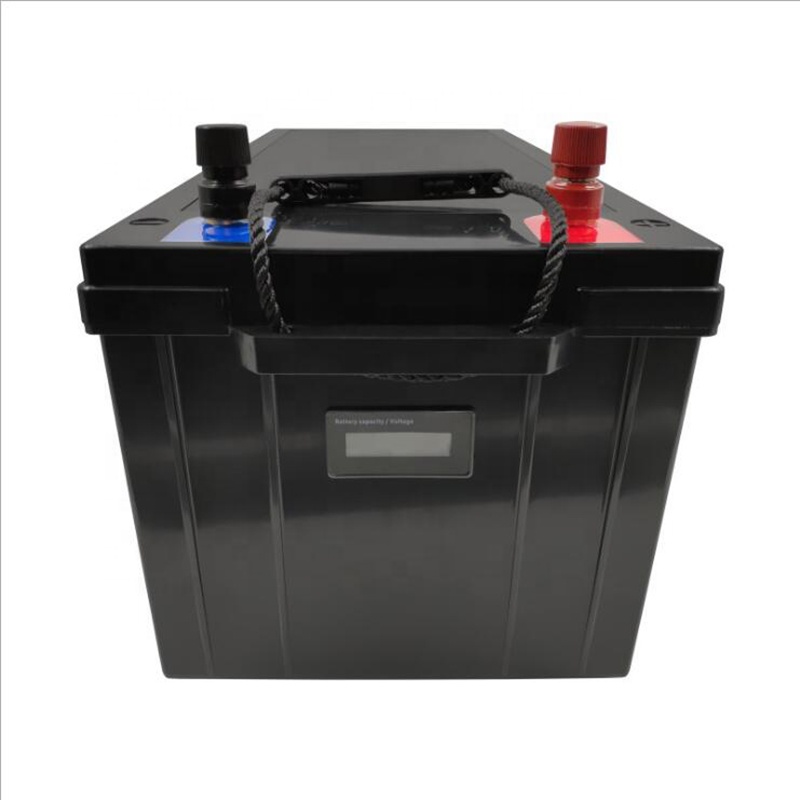

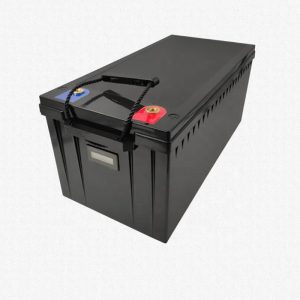

Deep Cycle LiFePO4 Battery Pack 12V 100Ah For Solar Storage Telecom Backup Battery

2020-11-24 06:43

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Cap acity	[email protected]
	Energy	1280Wh
	Internal Resistance	45≤mΩ
	Cycle Life	2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
	Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	14.0~14.6V
	Charging Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A
	Charging Current	20A
	Max.Charging Current	50A
Standard Discharging	Discharging Current	20A
	Max. Continuous Current	100A
	Max.Pulse Current	200A(<3S）
	Discharging Cut-off Voltage	10.0
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP55
Structure	Cell & Format	IFR32700 N60, 4S17P
	Casing	Plastic
	Dimension(LWH*TH)	328172215*220mm
	Weight	Approx. 13.1Kg
	Terminal	M8

Key Features :
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes

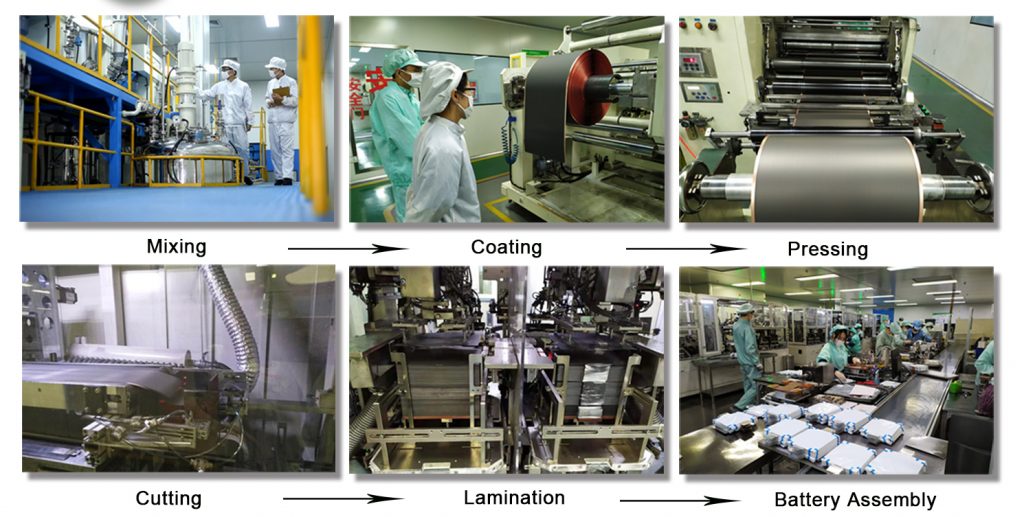

Our Factory

Our Advantage

Packing And Shipping

FAQ

(1) What is your MOQ ?
Some products need big MOQ,some just need small MOQ, for trial order,we can accept smaller MOQ ,so please inquiry us and tell us what quantity you want to order.

(2) Can I get a sample ?
Yes,we can provide free sample,customers just need pay for it and the shipping cost.

(3) Can you make my logo on the products?

Sure,we can make customer's logo on the products if the order quantity is big enough,please contact us

to know the details.

(4) What is the warranty ?
Usually the warranty time is 12 months,for old customers or some special products,the warranty time is longer.

(5) Can you make products according to my design ?
Sure,we have professional engineers and technicians team and strict production standards, we guarantee that the product will be 100% the same as your design.

(6) How about your product quality ?
"Quality is first" always is our principle,from raw materials to finished products,
every process must be inspected and tested by our QC group,good quality must be 100% guaranteed.

(7) How long can you send out the goods ?

Delivery :30 working days as usual for after sample approved.

(8) if your sepcification can't meet my requirements ,can you design and build my battery?

of course ,we will design an and build your own products according to your special requests .

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
