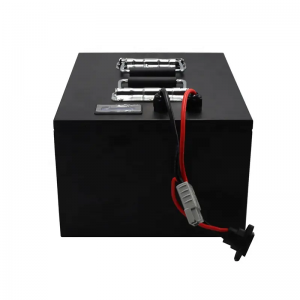

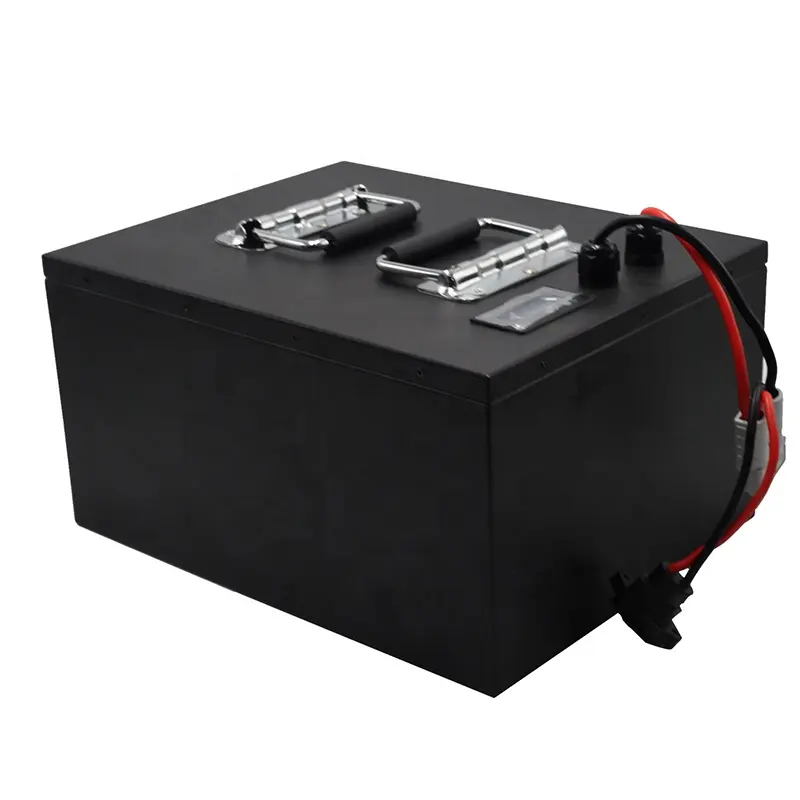

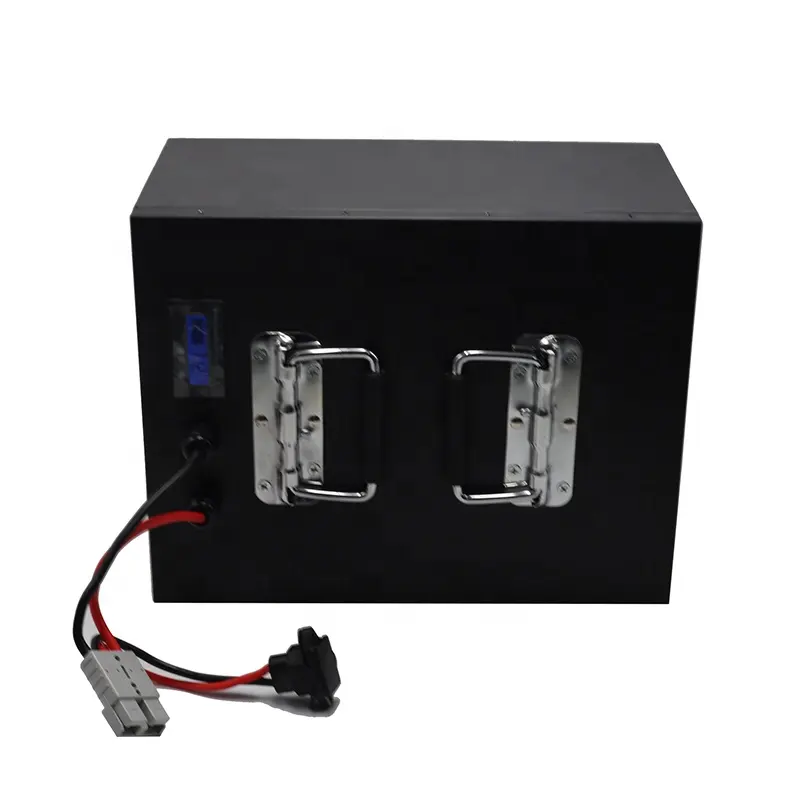

Customized LiFePO4 Battery Pack 72v 60ah Electric Vehicle Battery Lithium Ion Pack for EV Cars

2023-06-06 02:13

Specification

Brand Name	ALL IN ONE
Model	AIN7260
Warranty	5 Years
Nominal Voltage	76.8V
Nominal Capacity	[email protected]/customize
Energy	4416Wh
Internal Resistance	≤50mΩ
Cycle Life	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Self Discharge	≤3.5% per month at 25℃
Max.Charging Voltage	87.6 V
Charging Mode	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Charging Current	30A
Max.Charging Current	60A
Discharging Current	30A
Max. discharge Continuous Current	60A
Max.Pulse Current	120A(<3S）
Discharging Cut-off Voltage	60V
Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance	IP55
Cell & Format	LFP  60AH 24S1P/customize
Casing	Metal Case
Dimension(L*W*H*TH)	customize
Weight	50kg
Terminal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Charge method	CC/CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Certificate	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Reminder

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Application

Our Factory

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Packing And Shipping

Packing

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Shipping

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

Q: How should I pay? What modes of payment do you accept?
A: T/T, PayPal, Western Union.

Q: Is sample order acceptable?
A: Yes, for most of the batteries, sample orders for testing quality is reasonable and acceptable.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
