Customized deep cycle 36V 48V 72V 50ah 80ah 100ah lithium battery for golf cart RV camper

2024-03-15 02:39

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	Nominal Voltage	Nominal Capacity	Nominal Energy	Dimension	Weight
36V  (Support Customized Capacity/Size)
LFP36-50	38.4V	50Ah	1920Wh	522*238*218mm	≈18.5kg
LFP36-60	38.4V	60Ah	2304Wh	522*238*218mm	≈21kg
LFP36-80	38.4V	80Ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38.4V	100Ah	3840Wh	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)
LFP48-50	51.2V	50Ah	2560Wh	522*238*218mm	≈25kg
LFP48-60	51.2V	60Ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	51.2V	80Ah	4096Wh	522*238*218mm	≈32.5kg

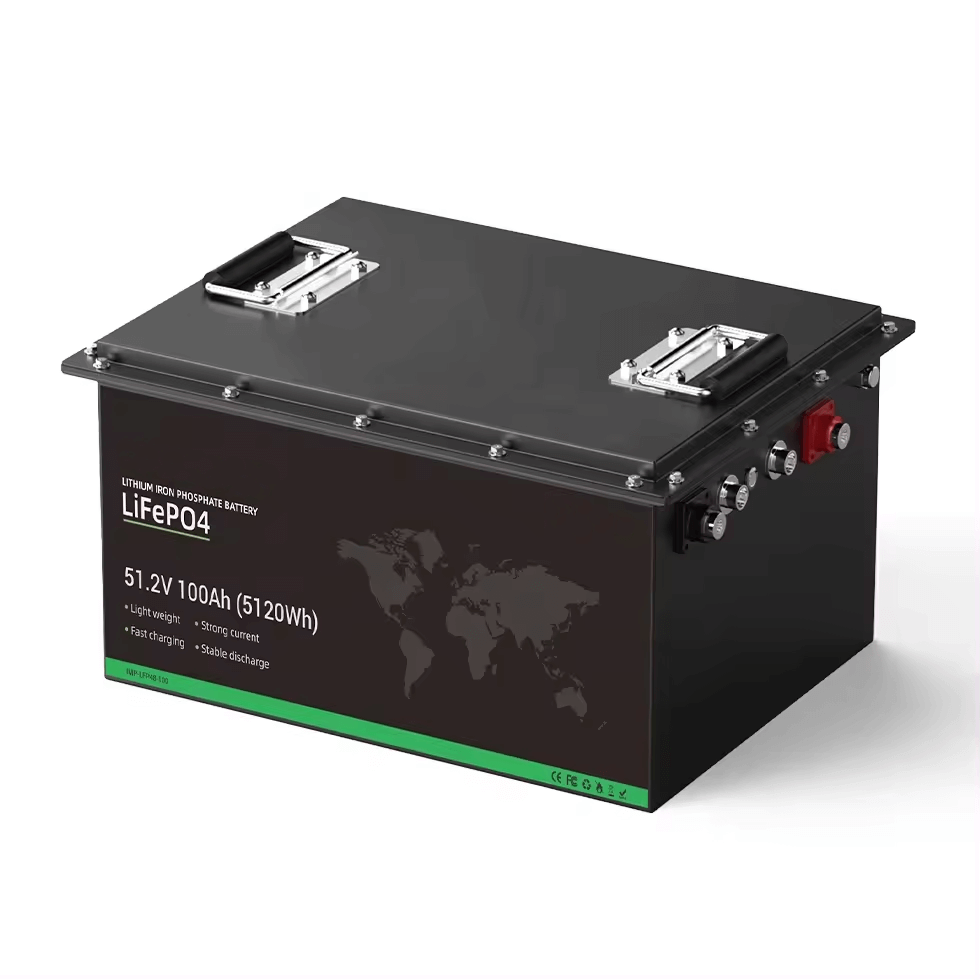

LFP48-100	51.2V	100Ah	5120Wh	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76.8V	50Ah	3840Wh	470*330*150mm	≈50kg

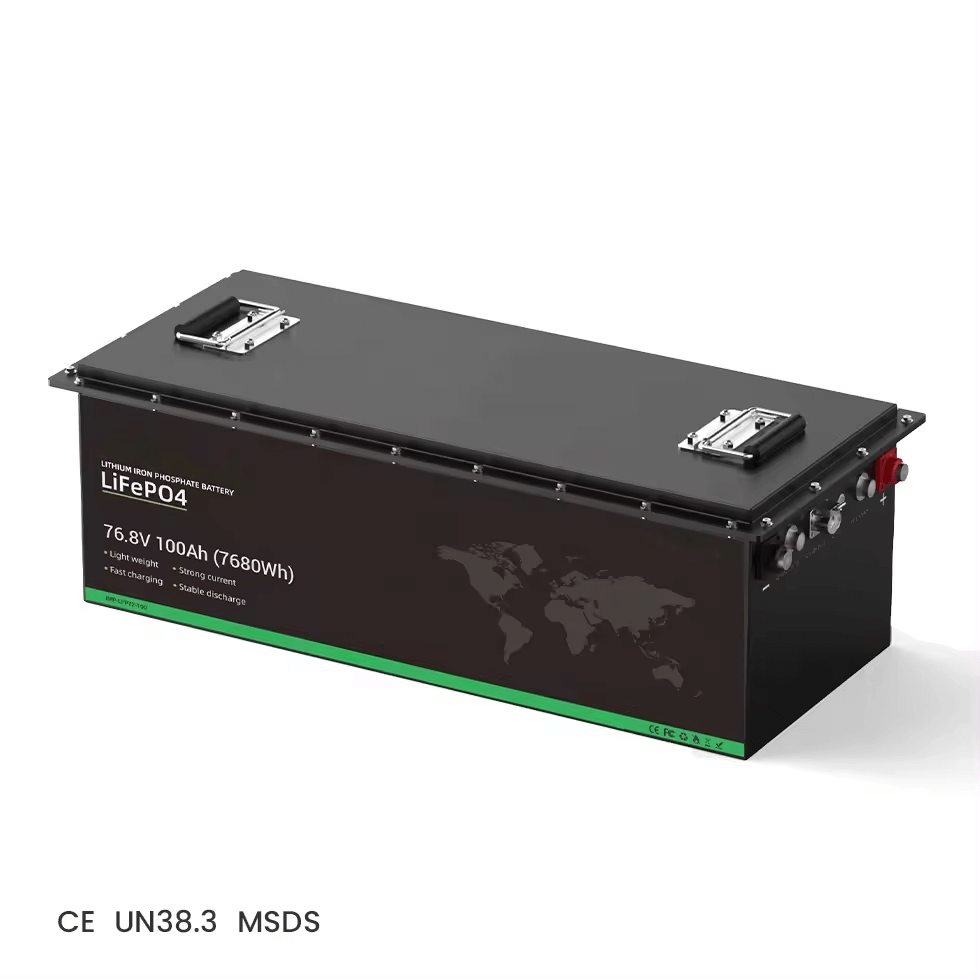

LFP72-100	76.8V	100Ah	7680Wh	730*350*150mm	≈65kg
General
Life Cycles		≥6000 cycles (80%DOD), at 25°C
Charge Temperature		0 ~ 45°C (32 ~ 113°F)
Discharge Temperature		-20 ~ 55°C(-4 ~ 131F)
Storage Temperature		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Performance

1. Single battery operation
2. Little or no voltage drop
3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

1. No acid fumes or spills
2. Reduce use of electricity
3. Less waste
4. 99% recyclable

Application

Our Factory



Shipping And Packing

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. For large order, ship by AIR or OCEAN.

FAQ

Q: Are you trading company or manufacturer?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.

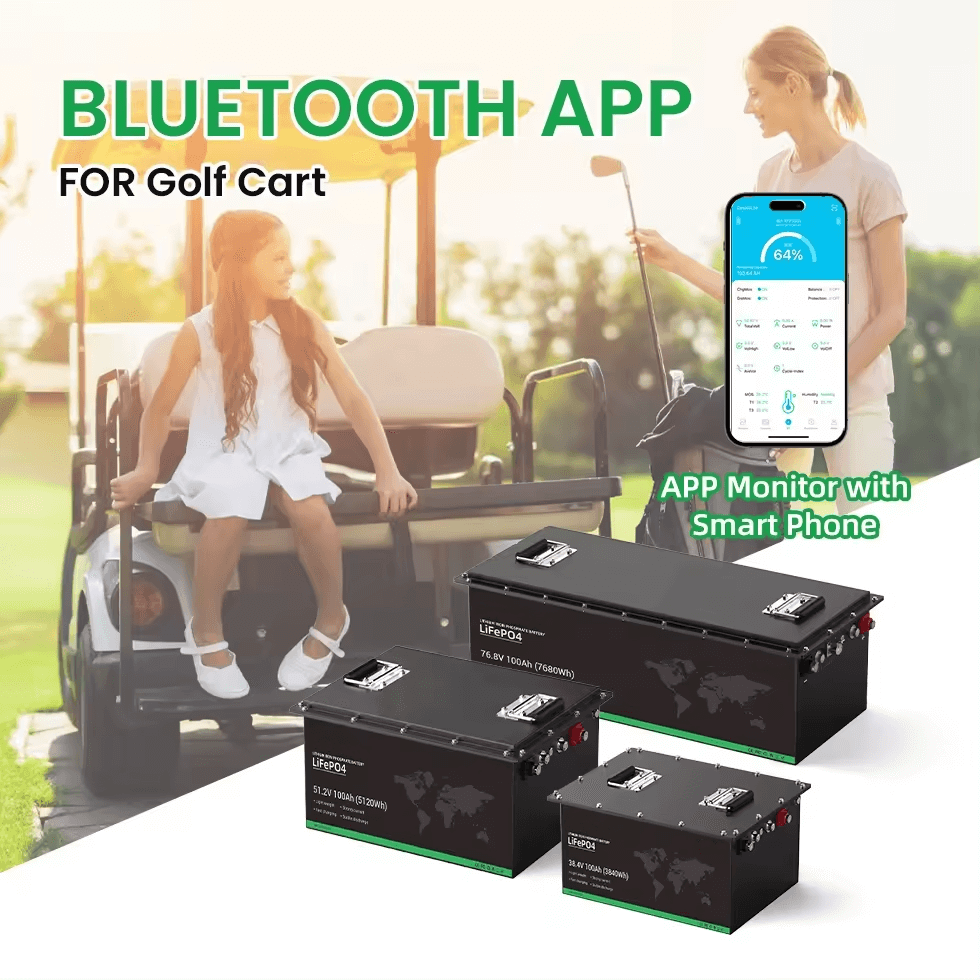

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
