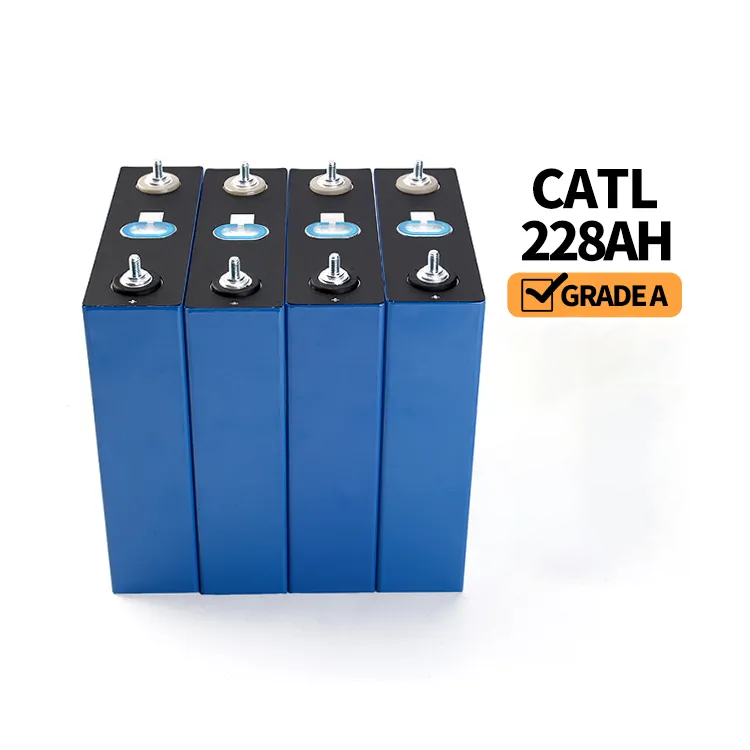

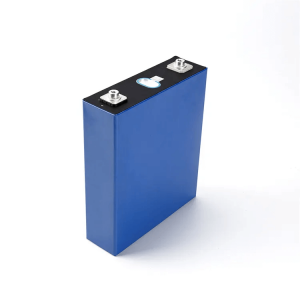

CATL 230Ah 228Ah 3.2V Lifepo4 Prismatic Lithium Battery Cells For Solar Bank Energy Storage

2023-06-08 06:11

Specification

Supplier	ALL IN ONE Battery Technology Co Ltd
Model	CATL LF228 230Ah LiFePO4 3.2V Battery cell
Real Capacity	Tested over 230Ah
Nominal Voltage	3.2v
Max Discharge Current	1C/ 230A
Max Charge Voltage	3.65V
AC Impedance Resistance	≤0.5mΩ
Charging Temperature	0-60℃
Discharging Temperature	-30-60℃
Cycle Life	6000 times SOC 80%
Weight	4.2kg

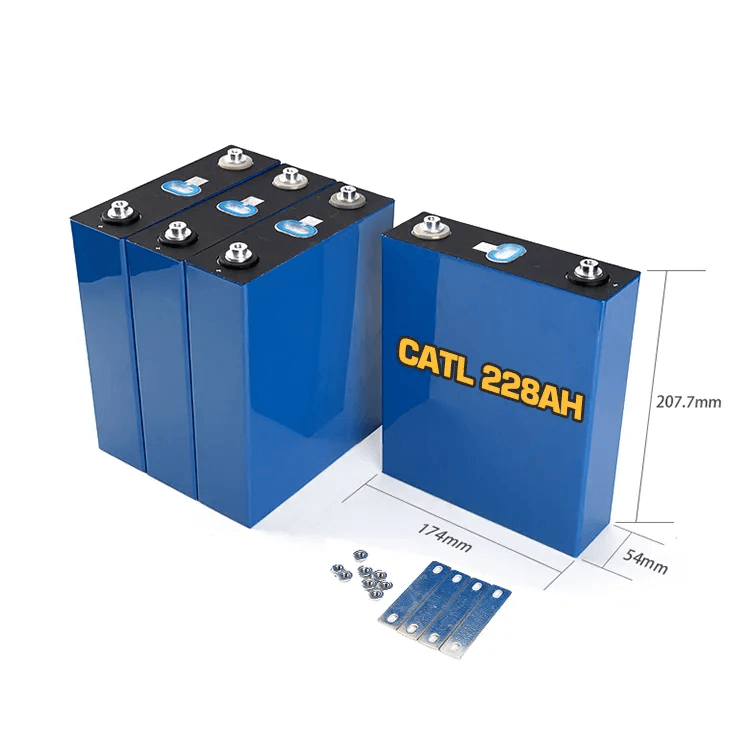

Dimensions (LWH)	17454208mm
Applications	Solar Energy Storage Systems,automotive,Home storage and organization,New Energy Passenger Car,New Energy Bus,New Energy Professional Car,New Energy Construction,New Energy Ship,Telecom ESS,Grid ESS,Energy Storage on Power Generation,Energy Storage on Power Consumption,off-grid and island/isolate systems,UPS backup power

Feature
1. High capacity and stable discharge voltage
2. Longer working time with high performance
3. Light weight with small size
4. Outstanding discharge properties and small internal resistance
5. No memory effect, good discharge ability and high load and resist high temperature
6. Pollution free for environmental protection
7. 100% Authentic original li-ion rechargeable battery
8. Bulid in anti-explosion protection and circuit protection

9. Long cycle life 5000 times

10. Good consistency, low self discharge

Note

1.This item is Original Grade A CATL 230Ah LiFePO4 cell, the QR code is intact, Grade A+, Brand new.
2. After our test, the maximum discharge capacity can reach 240Ah.
3.The price come with Free Bus bars and Bolts. one battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts）If need more please contact us online.Thank you!
4. One battery with one insulation battery sheet
5. The bus bars size: 75*20*2mm(cooper plated with nickel) Screw size: M6
6.We tested every battery cell's Voltage ,Internal resistance before shipping out from China.

Important & Warmly Reminder

Batteries should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃.

Avoiding contact with corrosive substances and staying away from fire and heat source. The battery should be charged and discharged every 6 months.The SOC for storage is between 30% ~ 50%
1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.
2. Please keep the battery away from the heat source, fire source and other corrosive environments such as water,heating, strong acid and strong alkali.
3. Do not short circuit the battery or install it with incorrect polarity at any time，otherwise it can cause serious damage to the battery and cause danger.
4. Do not mix batteries of different models or manufacturers.
5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.
6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.
7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.
8. In case of leakage, smoke or damage of battery, please stop using immediately.
9. DIY battery pack must be getting the cells balanced before assembly.

These situations not provide return nor refund
*After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.

*For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tip: These products are batteries only, without protection board,you need to purchase a match one! You can check our shop and search BMS.

Courier and logistics
In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be slower, so please wait patiently after place an order.

Application

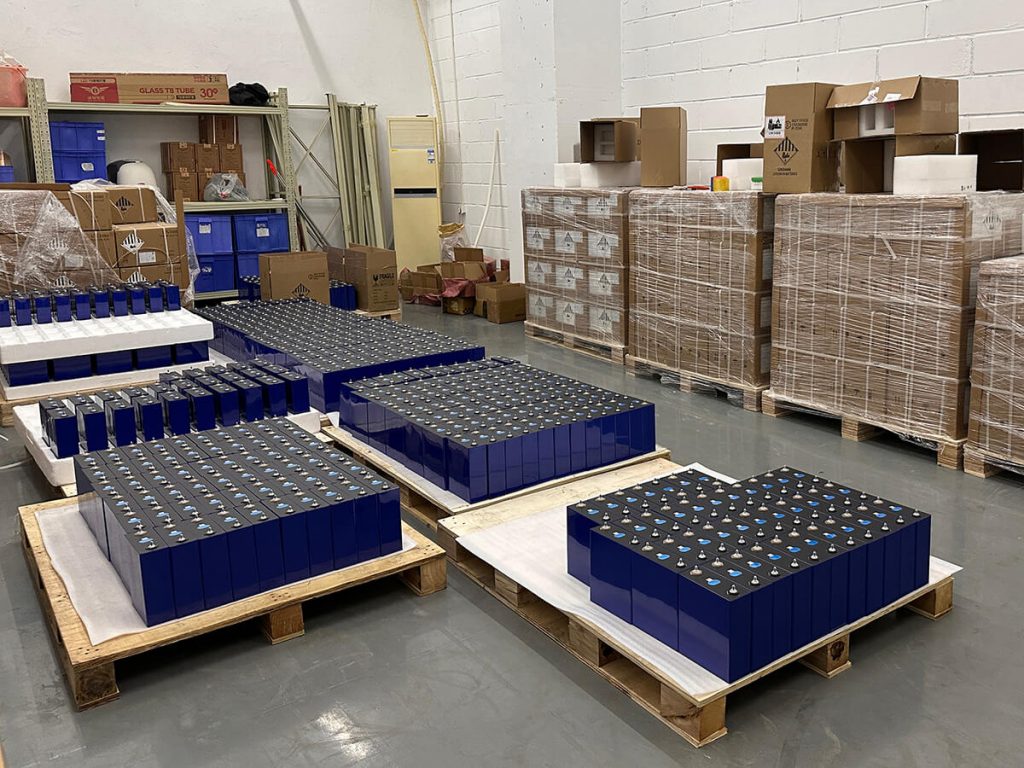

Our Factory

Why Choose Us

1. We are a supplier with 10 years' experiences.All our items come with high quality and good after-sale service.

2. Professional, technical, production & service team for your service.
3. Stable Quality – Come from superior material supplier and perfect quality control system.
4. Competitive price than any other suppliers.
5. 7/24 service for you, all the question will be dealed within 24 hours.

Packing And Shipping

FAQ

Q1. Can I have a sample order for lithium ion battery?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for lithium battery?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.

Q8: Do you accept OEM/ODM?
A: Sure, the customized order is available, with our pleasure to serve on you.

Q9: How long does it take to recharge the battery?
A: usually it takes 5 hours with 20A standard charger.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
