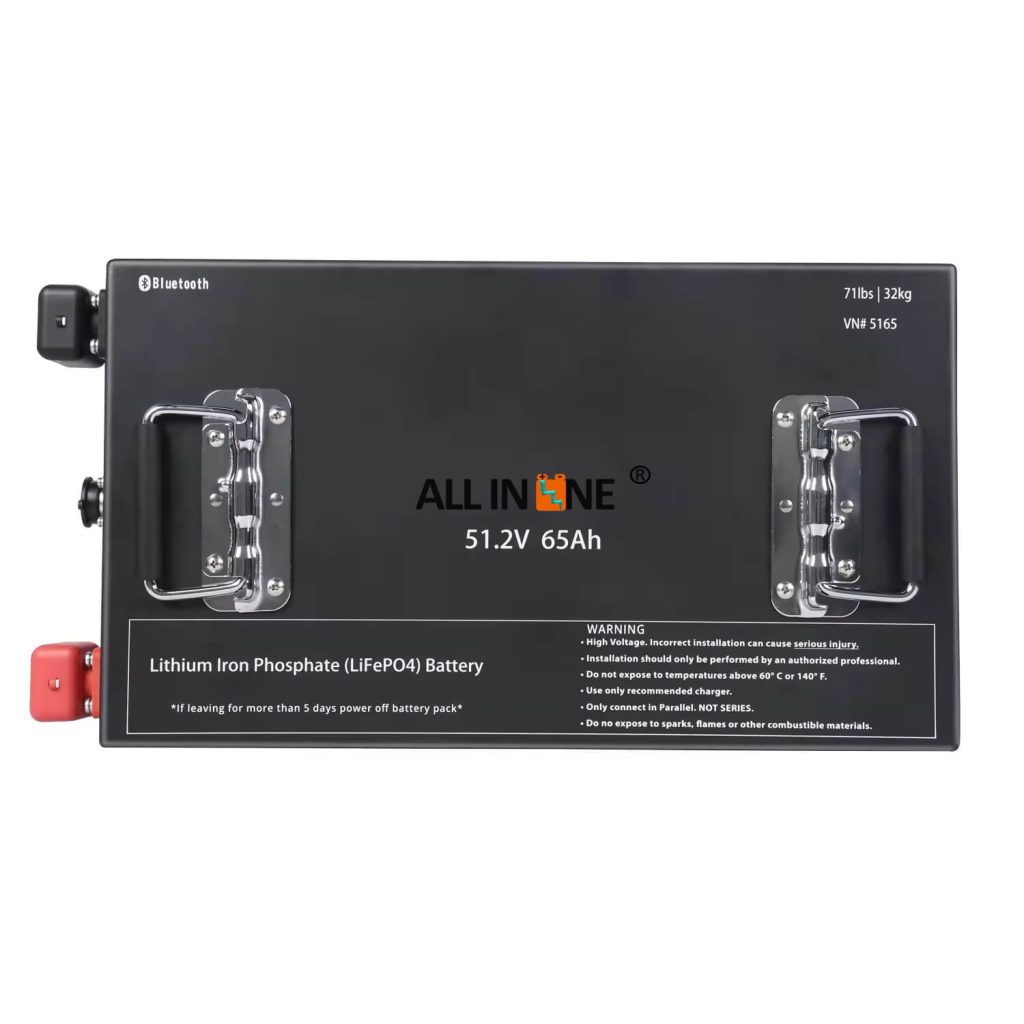

51.2v 65Ah golf cart lifepo4 lithium ion battery pack deep cycle IP67

2024-06-28 03:25

Specification

Model	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Nominal Voltage	51.2V	51.2V	51.2V	51.2V	76.8V
Nominal Capacity	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58.4V	58.4V	58.4V	58.4V	87.6V
Maximum Charge Current	100A	100A	60A	150A	100A
Maximum Continuous Discharge Current	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Discharge Cut-off Voltage	43.2V	43.2V	43.2V	43.2V	43.2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Charge Temperature	0~+55℃	0~+55℃	0~+55℃	0~+55℃	0~+55℃
Discharge Temperature	-20~+60℃	-20~+60℃	-20~+60℃	-20~+60℃	-20~+60℃
Cycle Life (25℃, 0.5C, 100% DOD)	>6000	>6000	>6000	>6000	>6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Protection Level	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
Weight	48.3kg	49kg	32kg	71kg	72.8kg

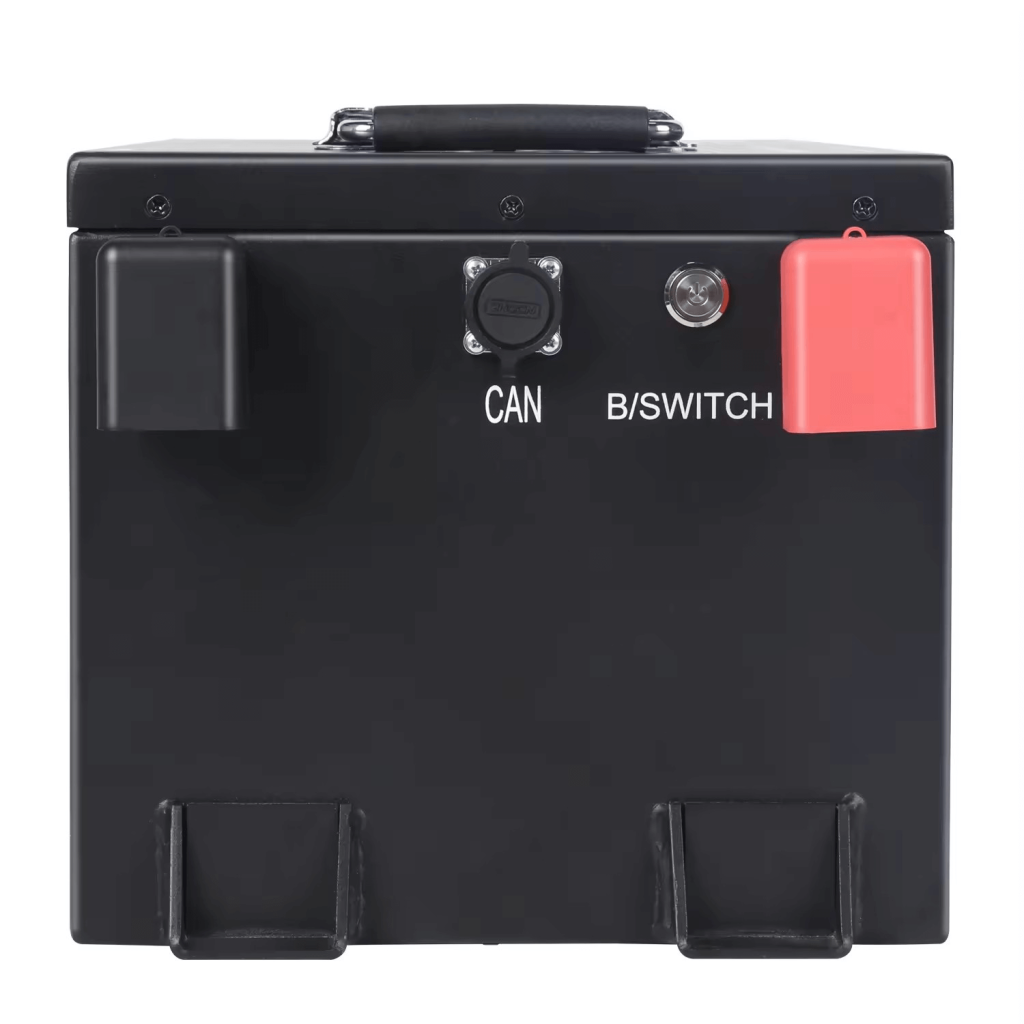

Communication Protocol	CAN/RS485	RS485	RS485	CAN/RS485	CAN/RS485



Key Features

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

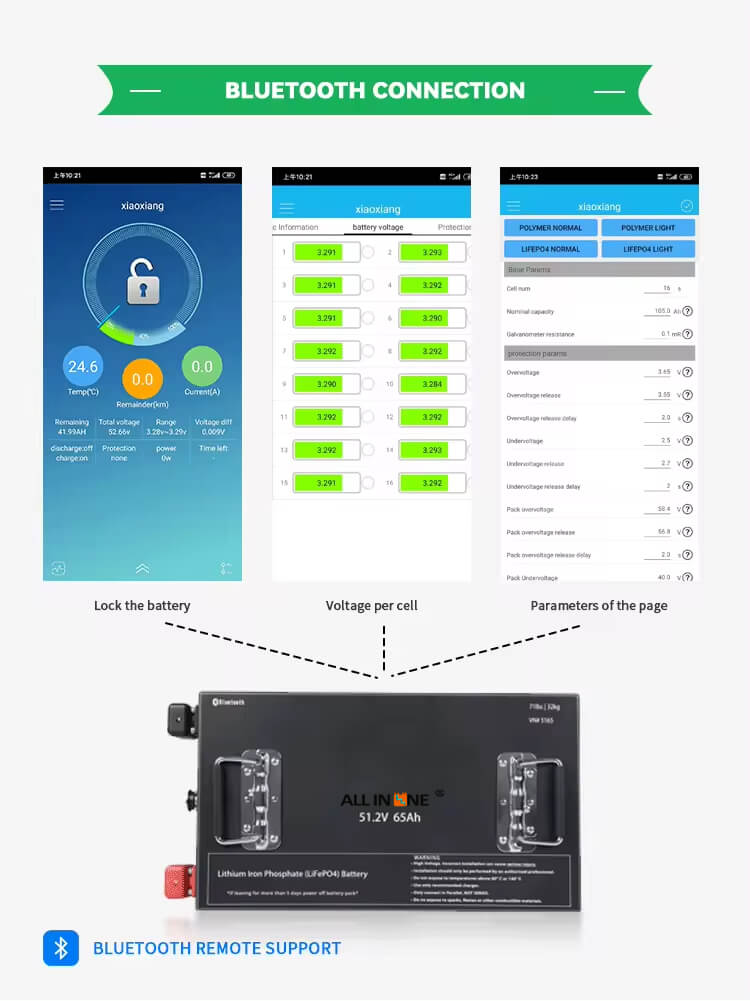

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

We Promise
1.All products will be tested 100% before shipment to ensure that the product does not have any quality problems.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



Application

Our Factory

Packing And Shipping

FAQ

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

Q2: Do you provide after-sales service?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

Q3 What is your company's advantage?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

Q4: Do you accept OEM/ODM?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.

Q6:Are your battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.

Q7:Are you a factory or a trading company?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
