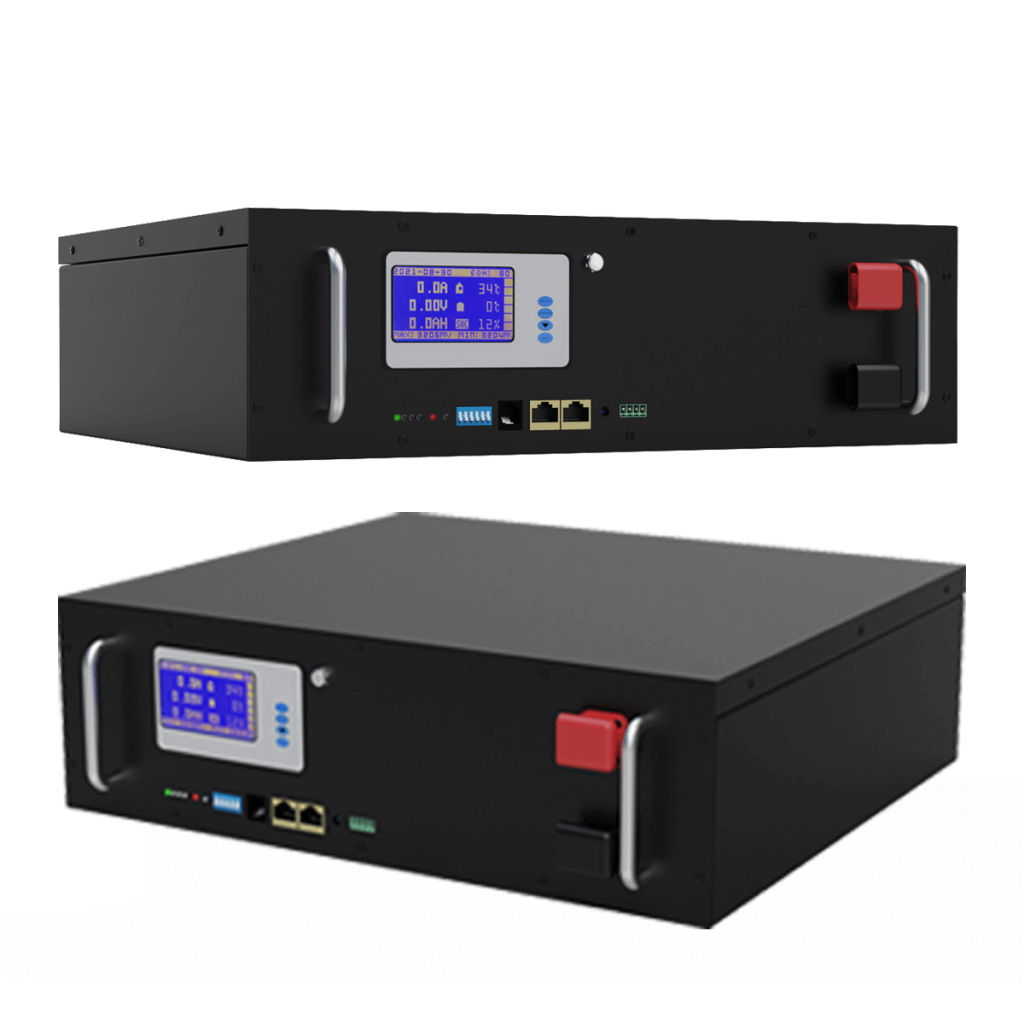

5000W 100Ah Lifepo4 48V Pack Battery Solar Storage System 5KW 10KW Cart Battery Lithium Ion Phosphate Battery

2021-10-27 07:07

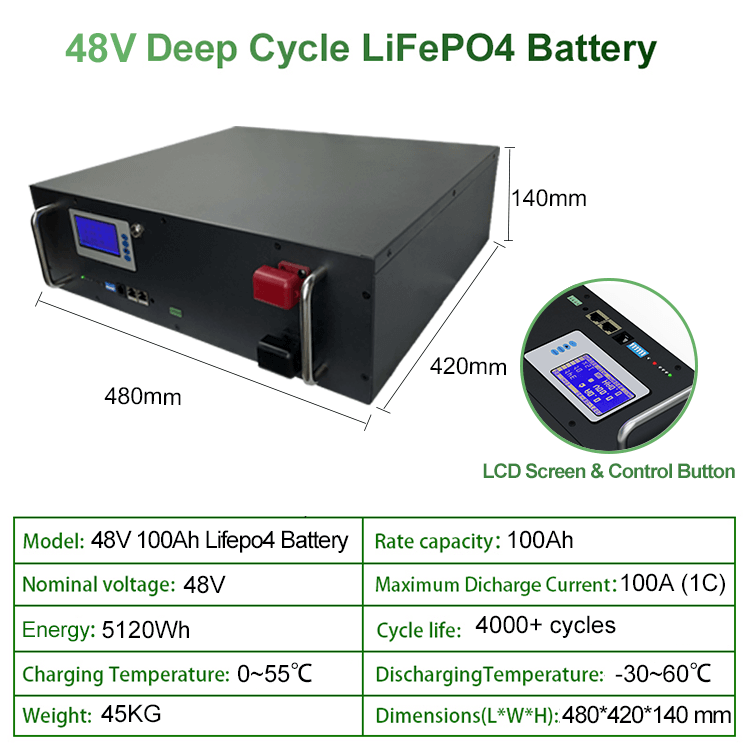

Specification

item	value
Warranty	5YEARS
Battery Size	48V 100Ah Lifepo4 Battery Pack
Brand Name	AIN
Certification	MSDS, CE, UN38.3, RoHS, FCC, EMC
Place of Origin	Guangdong, China
Weight	45kg
The charging ratio	1C
The discharge rate	1C
Dimension	L480W420H140 mm
Energy	5000W
Cycle life (80%DOD)	≥4000 cycles
Battery configation	16S1P
Components	cells+BMS+case
Battery cell	3.2V 100ah LifePO4 prismatic cell
Case Material	stainless steel

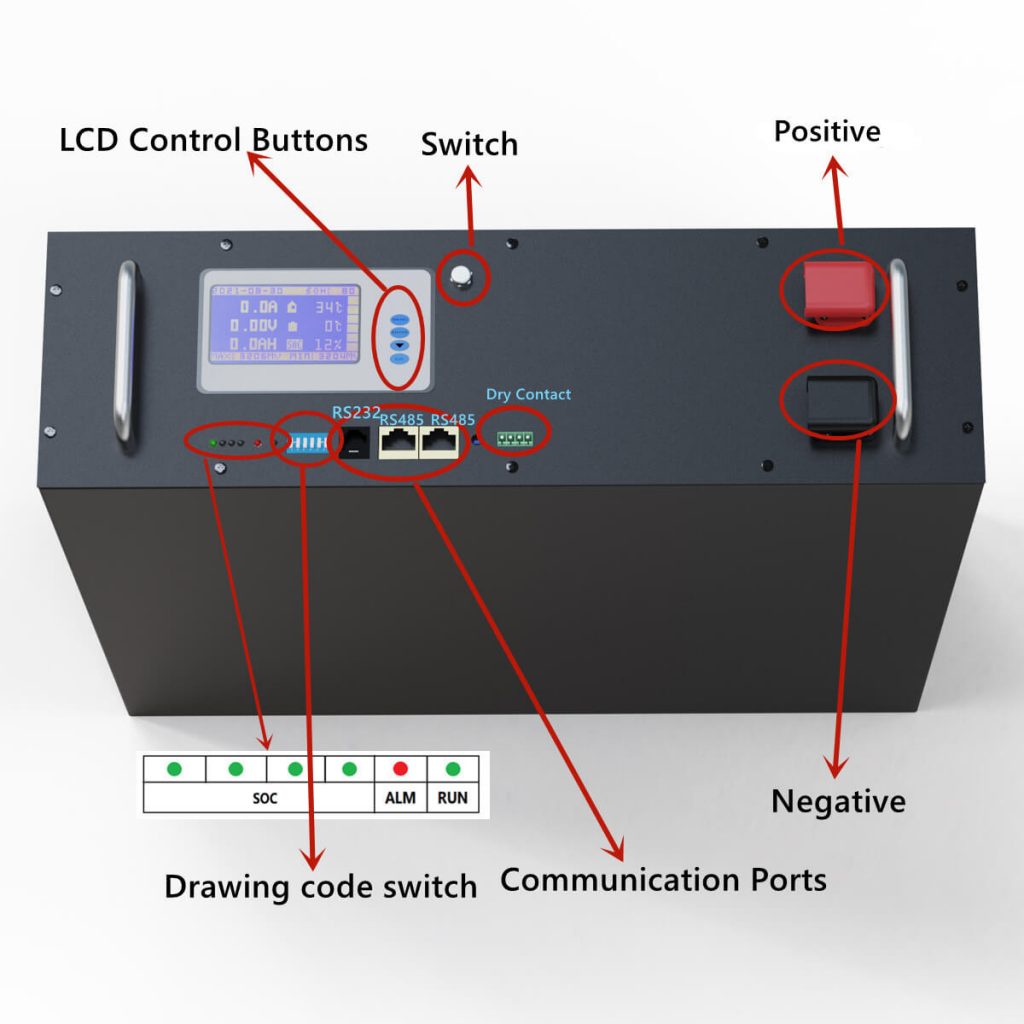

48V 100Ah lifepo4 battery pack with smart lithium battery management system, provide over voltage, under voltage, over current, high temperature, low temperature and short circuit protection and recovery complex function. Realize accurate SOC measurement and SOH health status statistics during charging and discharging. Achieve voltage balance during charging. Through the host computer software human-computer interaction, display and set the voltage, current, temperature and other alarm protection parameters, store and display the real-time data and historical data of the battery's operating status. There are a variety of sleep and wake-up methods. Parallel communication via RS485, Via RS232, RS485, CAN communication with a PC for data communication terminal via the parameter configuration and data monitoring computer software human-computer interaction. It can be widely used in home energy storage inverters, indoor and outdoor base stations, etc.

Related LiFePO4 Battery Packs

Feature

1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions (up to 512V)

Application

Our Factory

Packing And Shipping

FAQ

Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:3 year warranty.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
