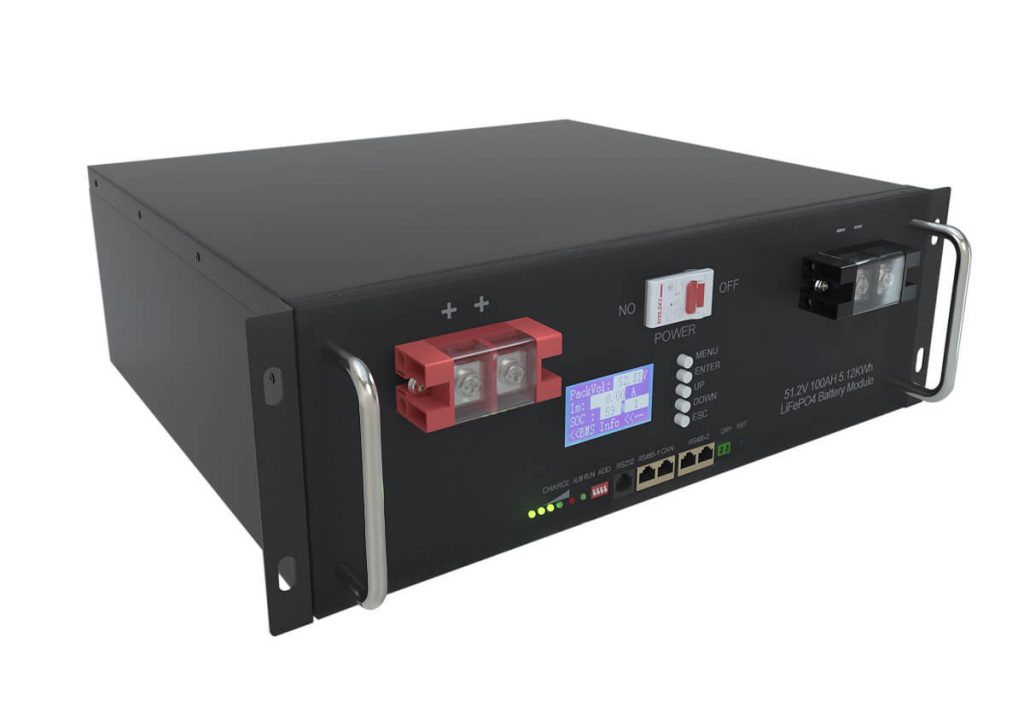

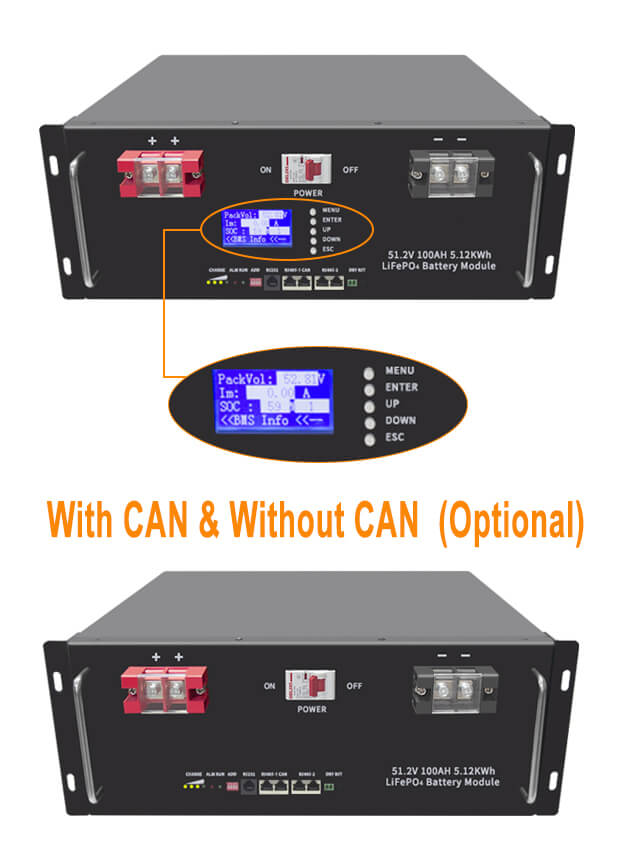

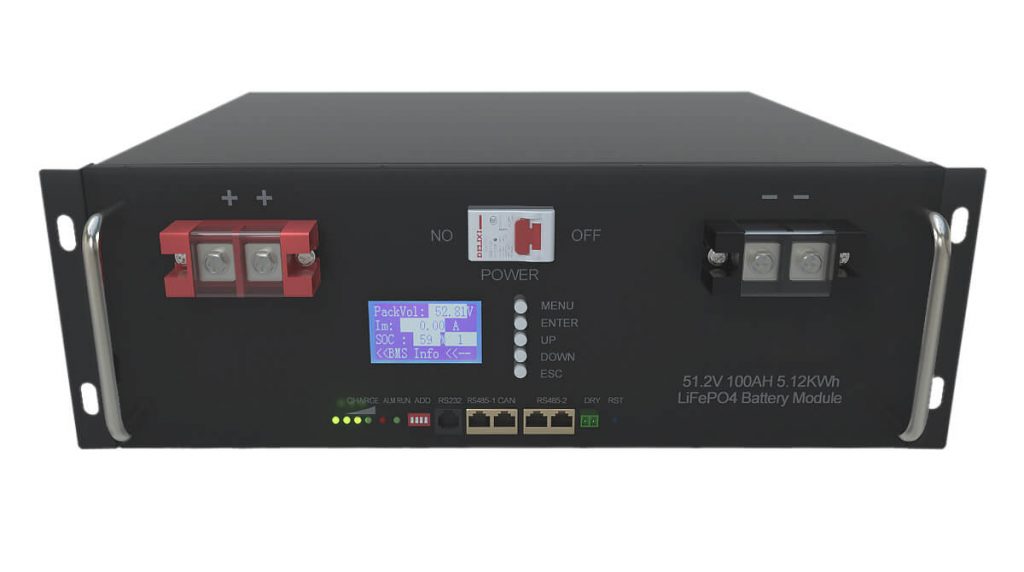

48V lifepo4 Battery Lithium ionen Akku 48V 100Ah lithium battery

2021-11-01 07:30

Specification

Function Parameter
Norminal Battery Energy	5120wh
Norminal Capacity	100Ah
Norminal Voltage	48V
Internal Resistance	≤22mΩ
Cycle Life	>6000
Months Self Discharge	<3%
Charge Data
DC Normal Charge Voltage	54.75±1Vdc
Charge Mode	0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
Recommended Charger Current	≤50A
Allowed Max. Charge Current	50Adc
Charge Cut-off Voltage	54.75±1Vdc
Discharge Data
Continuous Discharge Current	50A
Allowed Max. discharge current	100A (option:100Adc)
Rang of DC discharge voltage	37.5V-54.75Vdc
Working Condition
Charge Temperature	0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature	-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature	0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
Enclosure Protection Level	IP20
Mechanical Data
Cell & Method	48V100Ah, Prismatic
Shell material	Iron

Feature

1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions (up to 512V)

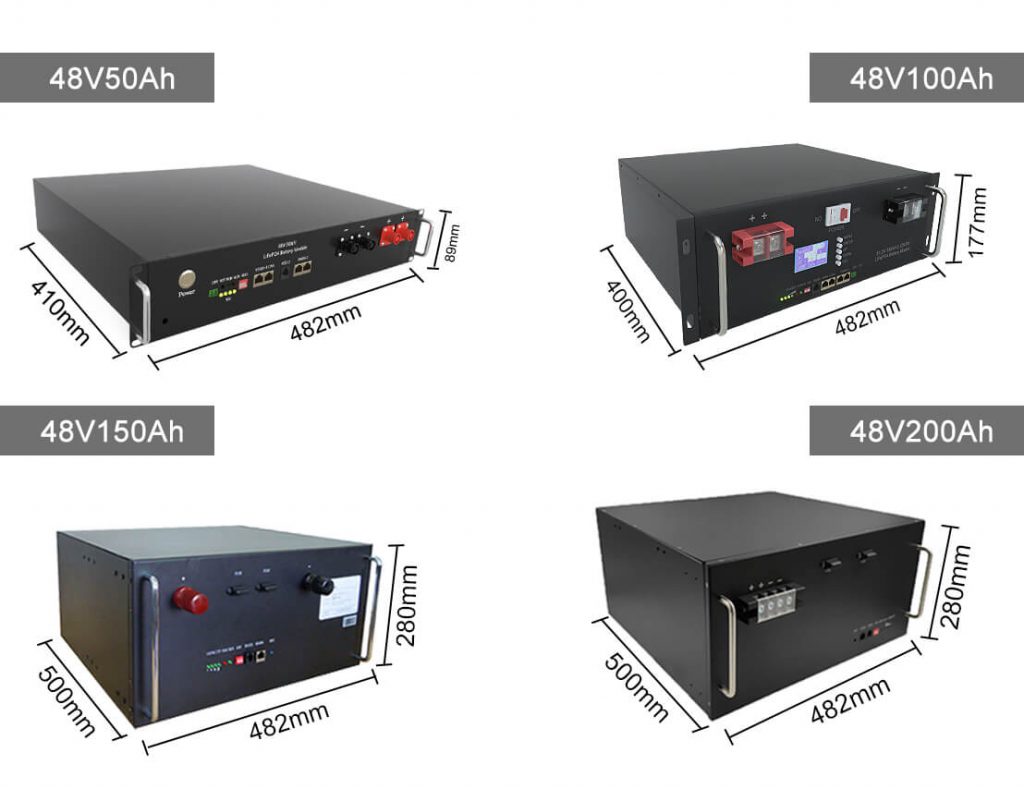

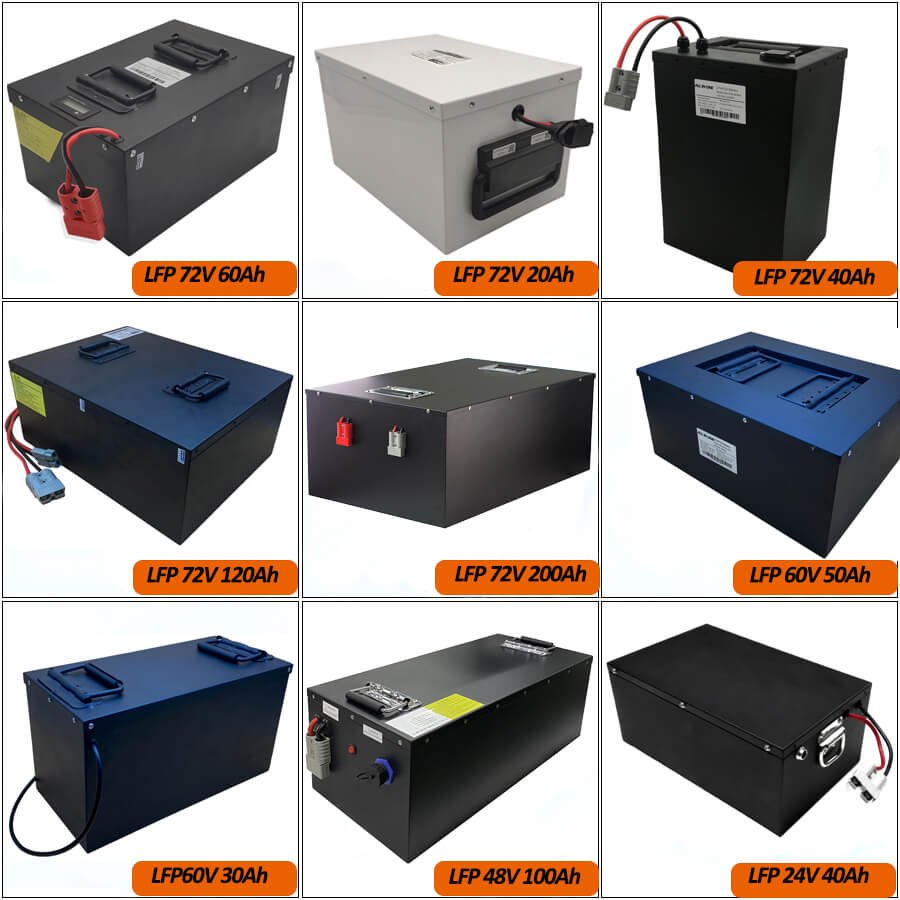

Related LiFePO4 Battery Packs

Our Factory

Packing And Shipping

* Battery will packed with Standard box then put into cartons.

* We will ship the battery by express such as DHL, TNT, UPS, FEDEX etc. We can also ship by sea or air transportation for bulk large order.

* Delivery time for production will depend on your quantity. Usually it will take 5-7 working days, the sample will be shipped out within 3 working days.

FAQ

Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:3 year warranty

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
