48v 100ah 200ah wholesale home hybrid power wall mounted storage rechargeable solar lithium lifepo4 battery pack

2023-08-18 06:01

Specification

Model No	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
Voltage	48/51.2V	48/51.2V	48/51.2V
Capacity	100Ah	150Ah	200Ah
Energy	5.12kwh	7.68kwh	10.24kwh

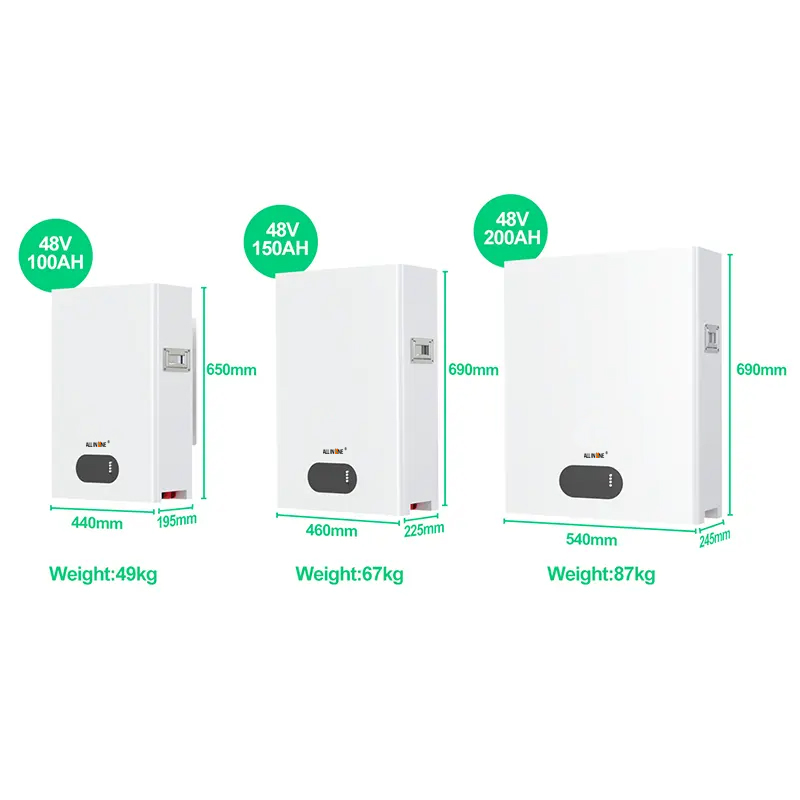

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Weight	49kg	67kg	87kg
Basic Parameters
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Operation Temperature	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Storage Temperature	0°C to 45°C @60+/-25% Relative Humidity	0°C to 45°C @60+/-25% Relative Humidity	0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Max Power	5120W	7680W	10240W

Our Factory

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

FAQ

Q: Are you trading company or manufacturer?
A: We are ALL IN ONE original factory.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

Q: Do you provide after-sales service?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.

Q: Do you accept OEM/ODM?
A: Yes,it is available.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
