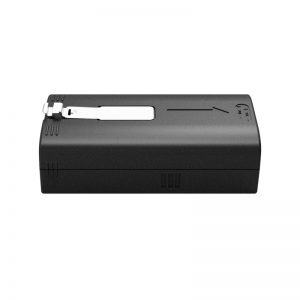

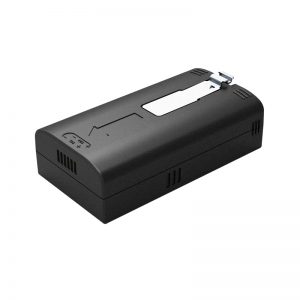

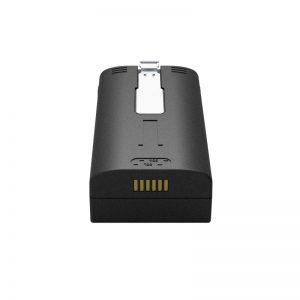

3.6V 6250mAh Samsung Lithium ion Battery Pack For Intelligent Door Lock

2020-08-25 07:11

3.6V 6250mAh Samsung Lithium ion Battery Pack For Intelligent Door Lock

• Model number:AIN3/6-6250
• Nominal voltage:3.6V
• Nominal capacity:6250mAh
• Battery cell:INR18650-35E/3350mAh/3.6V
• Dimension:22.2*42.0*77.9mm
• Application:intelligent door lock

Product Detail

Project number: 01DQ0023-43T

Cell model: INR18650-35E/3350mAh/3.6V

Battery specification: 18650-1S2P/6250mAh/3.6V

Nominal voltage：3.6V

Nominal capacity：6250mAh

Charging voltage:from 5V to 4.2V during charging

Charging current: ≤3.35A

Discharging current: 3.35A

Instant discharging current: 7.5A

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 130g

Product dimension: 22.2*42.0*77.9mm

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～23℃

Battery case: ABS+PC

Lithium ion battery protection: power calculation, short circuit protection, overcharge protection, over discharge protection, over current protection, USB charging, etc.

Application field: intelligent door lock
