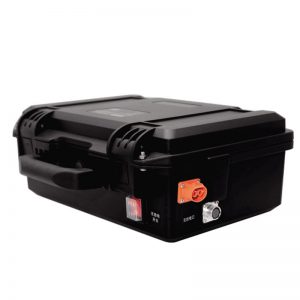

26650 46.8V 40Ah Portable outdoor portable power supply

2020-08-26 09:11

NO	Item	Standard	Remark
1	Model	AIN46/8-40000
2	Cell Specification	26650/5000mAh/3.6V
3	Battery pack	26650-13S8P-40Ah-46.8V
4	Rated Capacity	40Ah	Customizable
5	Min Capacity	36Ah
6	Energy	1872Wh
7	Nominal Voltage	46.8V（48V）	Customizable
8	Voltage Before Shipment	≥49.4V
9	Inner Resistance	≤200mΩ
10	Charging Voltage	54.6±0.2V
11	Floating Charging Voltage	55.25±0.2V
12	Standard Charging Current	8A	0.2C
13	Max Charging Current	20A	0.5C
14	Standard Discharging Current	8A	Customizable
15	Max Discharging Current	20A	Customizable
16	Peak discharge current	80A/0.1s
17	Terminate Voltage	35.75V
18	Size	Length 371±1 mm	Customizable
		Wide 270±1 mm	Customizable
		Thickness 146±1 mm	Customizable
19	Weight	Around 15kg±0.5kg
20	Output Way		Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharge Rate	The Residual Capacity： ≤3%/Month; ≤15%/Year
22	Self-discharge Rate	Recoverable Capacity ： ≤1.5%/Month; ≤8%/Year
23	Storage Environment	Less Than a Month：-20～+35℃、45～75%RH
		Less Than 3 Months：-10～+35℃、45～75%RH
		Recommended Storage Temperature：15～30℃、45～75%RH
24	Warranty	12 Months
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 27.2V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Rail transit communication, unmanned ship communication, portable communication equipment, mobile communication base station, photovoltaic solar energy storage, energy storage power station, home energy storage, traffic signs, mining mining, medical equipment and equipment, industrial machinery equipment, security instrumentation, power tools, wireless monitoring equipment, automation equipment, etc. Main Features: 1. Battery pack is safe and has good low temperature performance and long cycle life. 2. Battery pack cycle life is high, in line with the low carbon, energy saving, environmental values. 3. The BMS system is built into the battery, with multiple protection functions. The PCM/BMS adopts the most advanced chips and MOS from Japan and the United States, and is balanced. 4. Li-ni-co-mn-o (ternary material) and LiFePO4 (lithium iron) are available for selection. 5. The car gauge electric cell can be selected as a combination unit to ensure the consistency, stability and safety of the battery pack. 6. Multistring combination and battery modular design. 7. Small size, light weight, long life, high replacement efficiency, deep charging and discharging, easy to carry, to provide your system with reliable, high-quality power and energy 8. Power battery has the advantages of more cycle charge and discharge times, low self-discharge rate, long service life, strong deep discharge ability, high charging efficiency, strong power, strong anti-seismic ability, less maintenance or maintenance free, etc.
