25.6V 80Ah safety/long life LFP battery for RV/Caravan/UPS/Golf Cart 24V 80Ah

2021-08-11 09:01

Specification

Battery Type:	LiFePO4 battery
Rated Voltage	25.6V
Rated Capacity	80Ah
Continuous Charge Current	80A
Continuous Discharge Current	80A
Peak Discharge Current	160A
Recommend Charge Current	16A
Charge Cut-off Voltage	29.2V
Discharge Cut-off Voltage	20V
Working Temperature (CC/CV)	-20°C~60°C
Self-discharge	25°C，monthly ≤3%
Efficiency of Charge	100%@0.5C
Efficiency of Discharge	96-99% @1C
Cycle Life	≥5000 cycle
Dimension	522269220mm
Weight	25kg
Display Screen	Yes
Bluetooth	Optional

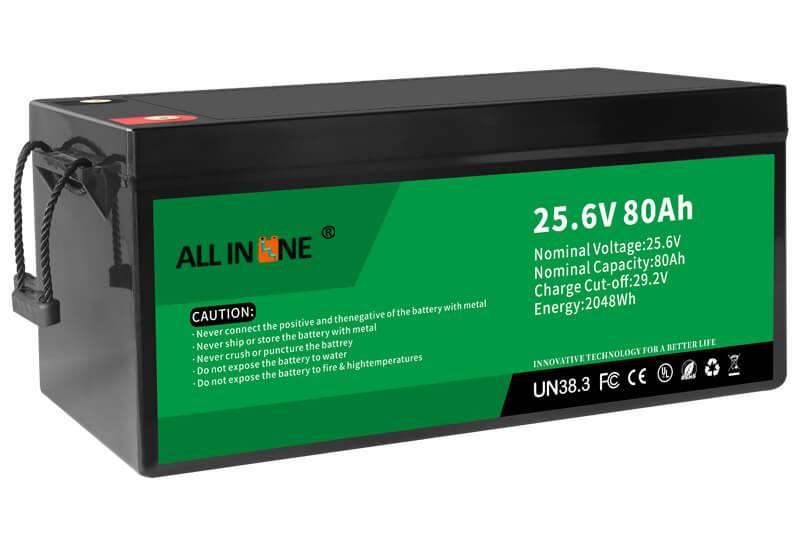

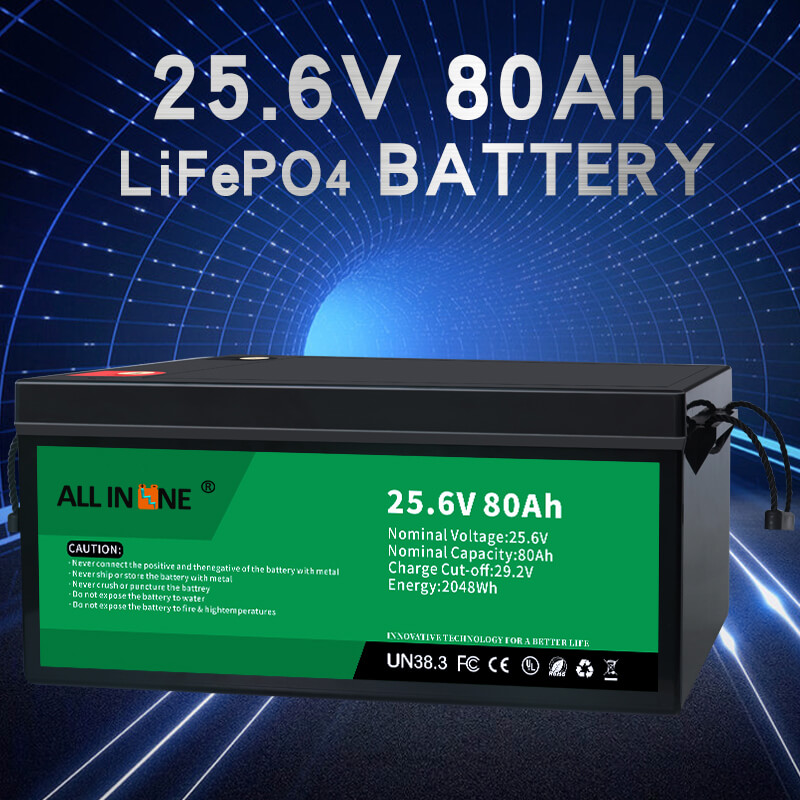

25.6V 80Ah LiFePO4 Battery

This 25.6V 80Ah LFP battery can be perfect substitution to AGM/GEL battery, ALL IN ONE also provides customized batteries with different capacity, dimension and functions according to customer's specific requirements. Comparing with AGM/GEL lead acid batteries, ALL IN ONE Li-ion (LiFePO4) substitution solutions has the following advantages

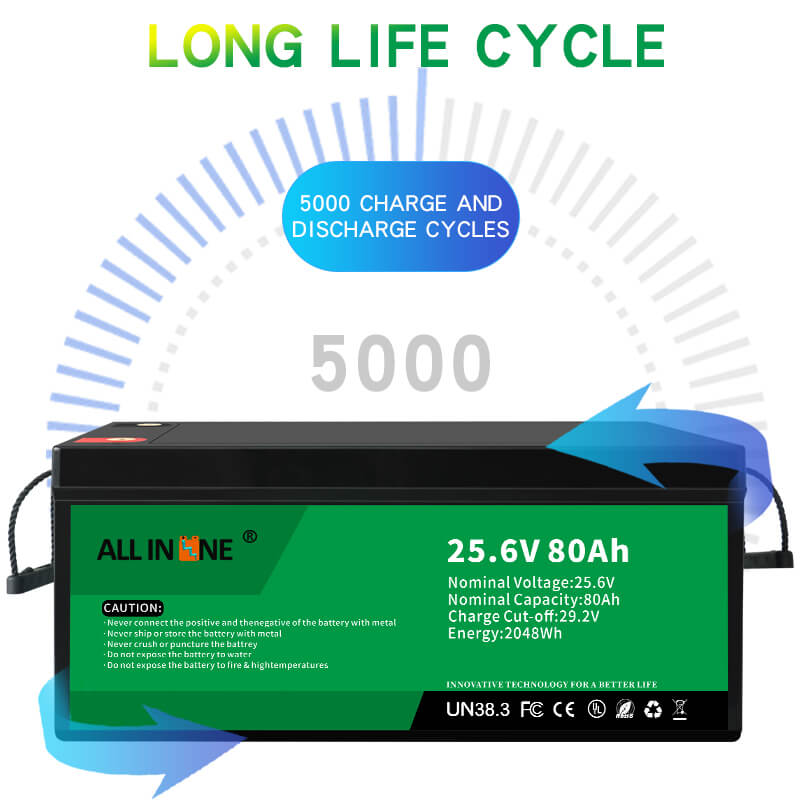

1. Long life: LiFePO4 battery has a long life cycle which is more than 5000 times and its life span is up to 10 years.

2. Light in weight: Li-ion (LiFePO4) substitution battery is only approx. 1/3 of lead acid battery in weight.

3. Deep discharge: the power supplied by LiFePO4 is 25% higher than the power supplied by AGM/GEL lead acid battery with same capacity.

4. Wide working temperature: LiFePO4 battery has wide working temperature range of -20°C ~ 60°C.

5. Environmental friendly: LiFePO4 does not contain any harmful heavy metal elements, it is green, non-toxic, pollution-free.

Related 24V LiFePO4 Batteries

Application

◆RV, Motorhome;

◆BOATS, Submarines, Marine, Yacht;

◆ Golf Cart;

◆Electric Bicycles/Scooters, Electric Folklifts;

◆ UPS; ◆ Electric, Solar, Wind Power System;

◆ Electric Vehicle , E-bike, E-rickshaw etc;

◆ Lighting, Solar Energy Storage Systems.

Our Factory

Our Service

1. Customized battery voltage and capacity,12V,24V,36V, 48V, 72V, 6Ah-1000Ah, OEM/ODM Warm welcome；

2. Customized battery case,plastic case,PVC,ABS Case,metal case, Stainless Case;

3. Customized BMS;

4. Delivery support,we can use your own cooperate forwarder or if you do not have cooperate forwarder,we can use our cooperate forwarder;

5. Provide local service and product training. 6. Set up an overseas warehouse in the US West (Delivery service).

Packing And Shipping

FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?

A:3 year warranty.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
