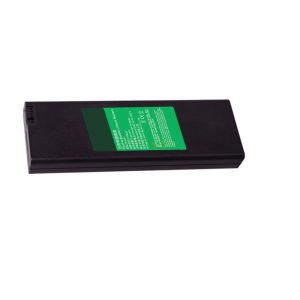

18650 7.2V 9000mAh Lithium batteries for air quality monitors

2020-08-27 01:12

NO	Item	Standard	Remark
1	Model	AIN7/2-9000
2	Cell Specification	18650/3000mAh/3.6V
3	Battery pack	18650/2S3P/9000mAh/7.2V	Customizable
4	Rated Capacity	9000mAh	Customizable
5	Min Capacity	8100mAh
6	Energy	64.8Wh
7	Nominal Voltage	7.2V	Customizable
8	Voltage Before Shipment	≥7.8V
9	Inner Resistance	≤150mΩ
10	Charging Voltage	8.40±0.2V
11	Floating Charging Voltage	8.50±0.2V
12	Standard Charging Current	1.8A
13	Max Charging Current	3.0A
14	Standard Discharging Current	1.8A
15	Max Discharging Current	4.5A
16	Peak discharge current	20A/0.1s
17	Terminate Voltage	6.0V
18	Size	Lengthy 145±2 mm	Customizable
		Wide 65±1 mm	Customizable
		Thickness 23±1 mm	Customizable
19	Weight	Around 350g±20g
20	Output Way		Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharge Rate	The Residual Capacity： ≤3%/Month; ≤15%/Year
22	Self-discharge Rate	Recoverable Capacity： ≤1.5%/Month; ≤8%/Year
23	Storage Environment	Less Than a Month：-20～+35℃、45～75%RH
		Less Than 3 Months：-10～+35℃、45～75%RH
		Recommended Storage Temperature：15～30℃、45～75%RH
24	Warranty	12 Months
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 7.8V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Air quality monitoring equipment, industrial supporting equipment, medical infusion pump lithium battery portable instrument power supply and other fields. Main Features: 1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.; 2. Monitor the battery capacity, voltage and temperature through SMBUS protocol, and realize the functions of over-charge, over-discharge and over-discharge protection, etc.
