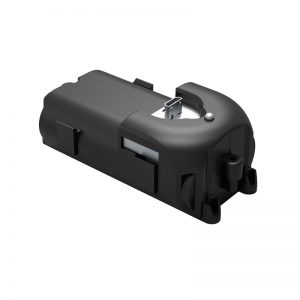

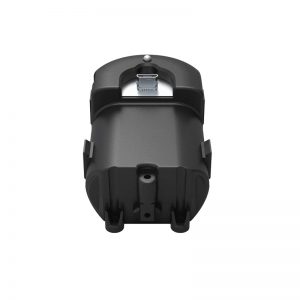

18650 3.7V 5200mAh Lithium Battery Pack for Security Monitoring Equipment

2020-08-25 07:49

18650 3.7V 5200mAh Lithium Battery Pack for Security Monitoring Equipment

• Model number:AIN3/7-5200
• Nominal voltage:3.7V
• Nominal capacity:5200mAh
• Battery cell: CMICR18650F8/2600mAh/3.7V
• Dimension:70*45.4*22.5mm（Max）
• Application: Security monitoring equipment

Product Detail

Cell model：CMICR18650F8/2600mAh/3.7V

Battery specification: 18650-1S2P/5200mAh/3.7V

Nominal voltage：3.7V

Nominal capacity：5200mAh

Charging voltage: 4.2V

Charging current: 1020mA

Discharging current: 1020mA

Maximum discharging current: 2550mA

End-off voltage: 12.0V

Internal resistance: ≤250mΩ

Battery weight: 130g

Product dimension: 70*45.4*22.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -10～60℃

Storage temperature:-20～50℃（less than a month)

Battery case: ABS+PC, Fire protection grade V-0

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over current protection, etc.

Application field: Security monitoring equipment



Product features

1.Battery management: using TI charging management chip with high stability, high precision monitoring, precise control, temperature protection and other functions, which can eliminate the potential safety hazard to the maximum extent.

2.ABS+PC housing with fire protection grade V-0 increases the reliability and firmness of the battery.

3. Data communication management: The battery has communication transmission, accurate data transmission, precise temperature control, real-time battery condition monitoring and control.

4.The battery pack has good security and nice performance.

5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
