12.8V 200Ah lithium rechargeable battery for energy storage lead-acid replacement 12V lfp battery for solar backup

2021-01-13 09:13

Product Description

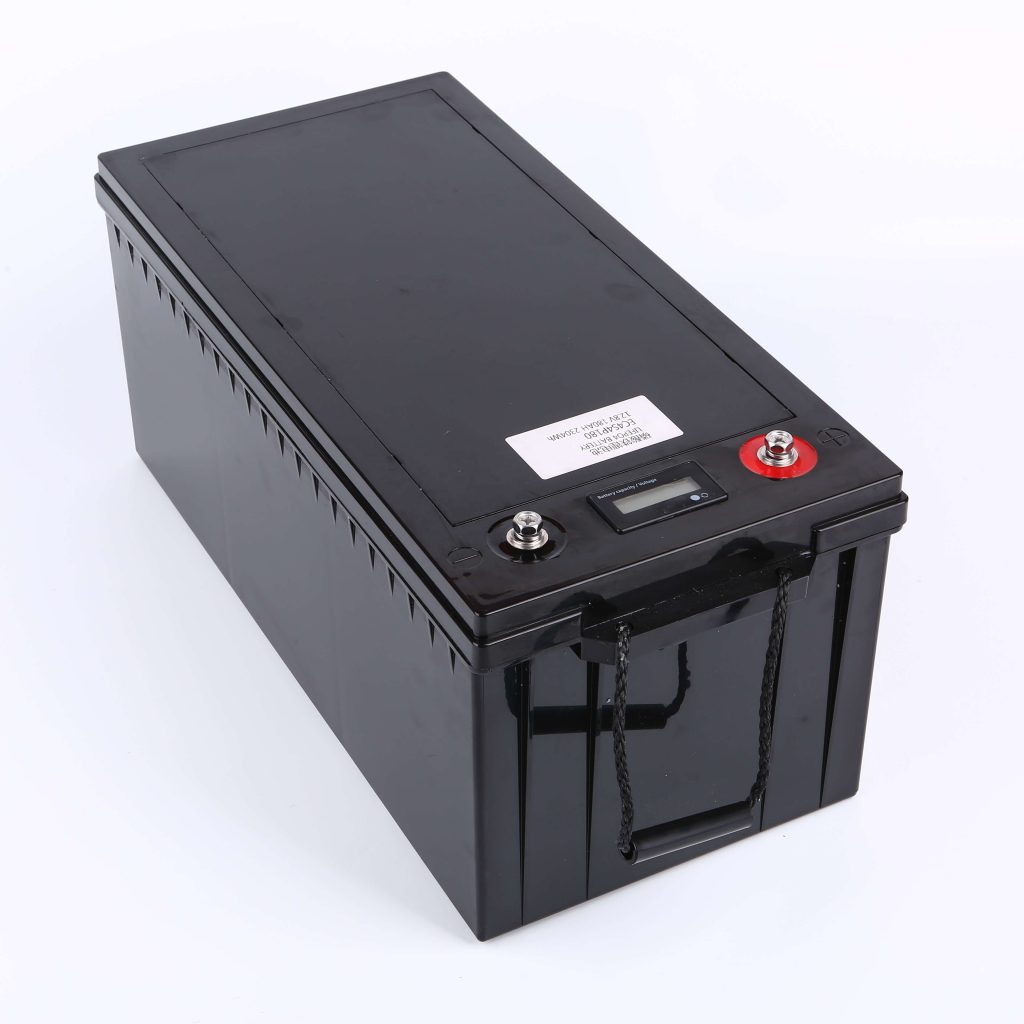

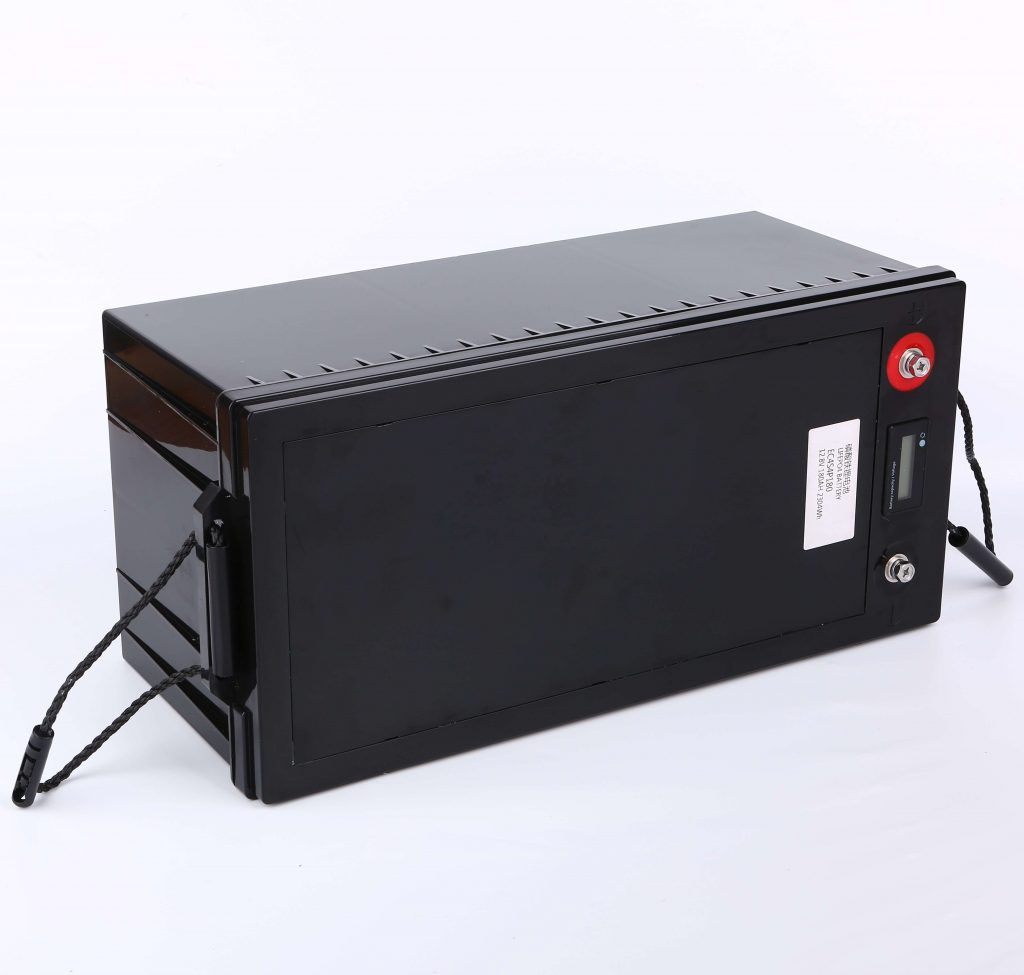

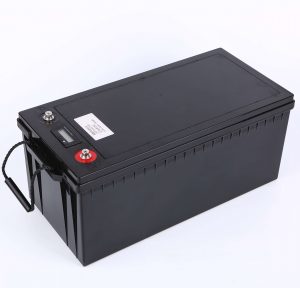

12.8V 200AH Lithium Battery

This Battery is for replacing the Lead-Acid battery,High Energy Density, Long Cycle Life, High Discharge-Charge Rate,can be used in Solar and Residential Storage and Home Backup,as well as Telecom Backup appcilations.

	Project	Parameter	Remark
Cell	Battery Type	LiFePO4 Battery
	Cell Model	Cell Model LF32650-6000
	Nominal Capacity	6Ah	Discharge : 0.1C Cut-off Voltage:2.5V
	Minimum Capacity	5.8Ah	Discharge : 0.1C Cell Cut-off Voltage: 2.5V
	Nominal voltage	3.2V
	Internal Impedance	≤25mΩ
Battery Pack	Dimension	MAX. 32.5x71mm
	Weight	About 141 g
	Pack Method	4S34P
	Nominal Capacity	200Ah	Discharge : 0.1C Cut-off Voltage:10V
	Minimum Capacity	197.2Ah	Discharge : 0.1C Cut-off Voltage: 10V
	Nominal Voltage	12.8V
	Energy	2560WH
	Charge Voltage	14.6V
	Discharge cut-off voltage	10V
	Charge Method	CC/CV
	Standard Charge Current	15A
	Max. Charge Current	15A
	Standard Discharge Current	20A
	Max. Continues Discharge Current	20A
	Cycle Life	2000 times	80% Remained
	Internal Impedance	≤70mΩ	Lead-Acid Enclosure
	Dimension	L521xW237.9xH217.3mm
	Output Wire	/
	Output Connector	M8 terminal
	Weight	Approx.22kg
	Working Temperature Range	Charge: 0°C--45°C Discharge: -20°C--60°C
	Storage Temperature	-10°C--45°C

Applications
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)

Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment

Features
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Maintenance-free operation.
*Broad operating temperature range.

Related LiFePO4 Batteries

Our Factory

Packing And Shipping

WHY CHOOSE US ?

HIGHPRODUCTIVITY
10 thousand square meters plant 12 automatic production line 600,000 battery packs and chargers production capacity a month.
STRICK CONTROL & BEST QUALITY
Strict control for cleanliness in dust-free workshop from IQC,IPQC to OQC, we control every step strictly CE, UL, SGS, FCC, ROHS and ISO9001: 2000 certified.
CUSTOMIZATION & FACTORY PRICE
We dedicated and experienced engineering, manufacturing and quality control teams work close to support our customers from product design to mass production.
EXCELLENT SERVICE
Reply within 24 working hours. We use specialized equipment, well-known suppliers of materials to resolve customer issues, to test every product in 100% for the quality assurance.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
