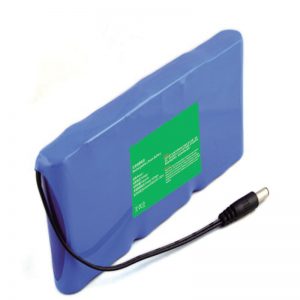

10.8V6600mAh 18650 Orbital detector lithium battery pack

2020-08-26 01:30

Specification

NO	Item	Standard	Remark
1	Model	AIN10/8-6600
2	Cell Specification	18650/2200mAh/3.6V
3	Battery pack	18650-3S3P-6600mAh-10.8V
4	Rated Capacity	6600mAh	Customizable
5	Min Capacity	6270mAh
6	Energy	71.28Wh
7	Nominal Voltage	10.8V	Customizable
8	Voltage Before Shipment	≥11.4V
9	Inner Resistance	≤150mΩ
10	Charging Voltage	12.6±0.2V
11	Floating Charging Voltage	12.65±0.2V
12	Standard Charging Current	1320mA
13	Max Charging Current	3300mA
14	Standard Discharging Current	1320mA	Customizable
15	Max Discharging Current	6600mA	Customizable
16	Peak discharge current	12000mA/0.1s
17	Terminate Voltage	8.25V
18	Size	Length 170±1 mm	Customizable
		Wide 75±1 mm	Customizable
		Thickness 20±1 mm	Customizable
19	Weight	Around 600g±30g
20	Output Way	5.5DC Female Socket UL2468/22#，Wire Length 150mm	Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharge Rate	The Residual Capacity： ≤3%/Month; ≤15%/Year
22	Self-discharge Rate	Recoverable Capacity ： ≤1.5%/Month; ≤8%/Year
23	Storage Environment	Less Than 1 Month：-20～+35℃、45～75%RH
		Less Than 3 Month：-10～+35℃、45～75%RH
		Recommended Storage Temperature：15～30℃、45～75%RH
24	Warranty	12 Months
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 11.5V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Industrial supporting equipment, hand-held instrument equipment, track detection instruments and other fields Main Features: 1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;
