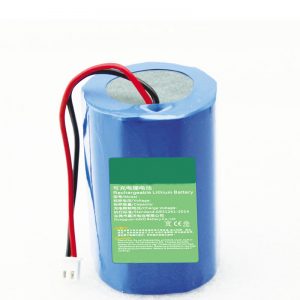

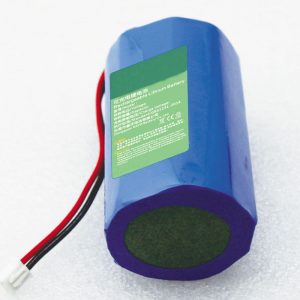

10.8V2200mAh 18650 Lithium Battery pack for intelligent sweeper

2020-08-26 00:20

Specification:

No	Item	Standard	Remark
1	Model	AIN10/8-2600
2	Cell Specification	ICR18650/2600mAh/3.6V
3	Battery pack	18650-3S2P-5200mAh-10.8V
4	Rated Capacity	5200mAh	Customizable
5	Min Capacity	4940mAh
6	Energy	56.16Wh
7	Nominal Voltage	10.8V	Customizable
8	Voltage Before Shipment	≥11.4V
9	Inner Resistance	≤150mΩ
10	Charging Voltage	12.6±0.2V
11	Floating Charging Voltage	12.65±0.2V
12	Standard Charging Current	1040mA
13	Max Charging Current	2600mA
14	Standard Discharging Current	1040mA	Customizable
15	Max Discharging Current	5200mA	Customizable
16	Peak discharge current	8000mA/0.1s
17	Terminate Voltage	8.25V
18	Size	Dia 58±1 mm	Customizable
		Wide 0±1 mm
		Thickness 75±1 mm	Customizable
19	Weight	Around 180g±30g
20	Output Way	2PIN Connector 2.54 Pin Distance UL2468/22#，Wire 150mm	Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharging Rate	The Residual Capacity：≤3%/Month; ≤15%/Year
22	Self-discharging Rate	Recoverable Capacity ： ≤1.5%/Year; ≤8%/Month
23	Storage Environment	Less Than 1 Month：-20～+35℃、45～75%RH
		Less Than 3 Months：-10～+35℃、45～75%RH
		Recommended Storage Environment ：15～30℃、45～75%RH
24	Warranty	12 Months
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 11.5V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Industrial supporting facilities, intelligent sweeping robot and other fields Main Features: 1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;
