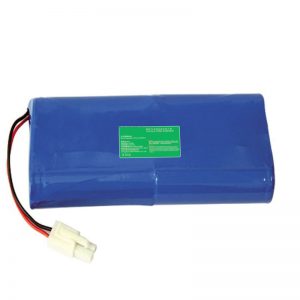

10.8V 4400mAh 18650 Lithium battery pack for medical monitor

2020-08-26 00:53

Specification

No	Item	Standard	Remark
1	Model	02KY1906-106
2	Cell Specification	ICR18650/2200mAh/3.6V
3	Battery Pack	18650-3S2P-4400mAh-10.8V
4	Rated Capacity	4400mAh
5	Min Capacity	3960mAh
6	Energy	47.52Wh
7	Nominal Voltage	10.8V	Customizable
8	Voltage Before Shipment	≥11.4V
9	Inner Resistance	≤150mΩ
10	Charging Voltage	12.6±0.2V
11	Floating Charging Voltage	12.65±0.2V
12	Standard Charging Current	880mA
13	Max Charging Current	2200mA
14	Standard Discharging Current	880mA	Customizable
15	Max Discharging Current	4400mA	Customizable
16	Peak discharge current	8000mA/0.1s
17	Terminate Voltage	8.25V
18	Size	Length 140±1 mm	Customizable
		Wide 60±1 mm	Customizable
		Thickness 20±1 mm	Customizable
19	Weight	Around 320g±30g
20	Output Way	UL1007 22# 350mm Wires，3±0.5mm	Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharge Rate	The Residual Capacity：≤3%/Month; ≤15%/Year
22	Self-discharge Rate	Recoverable Capacity ： ≤1.5%/Month; ≤8%/Year
23	Storage Environment	Less Than 1 Month：-20～+35℃、45～75%RH
		Less Than 3 Months：-10～+35℃、45～75%RH
		Recommend Storage Environment：15～30℃、45～75%RH
24	Warranty	12 Months
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 11.5V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Industrial supporting equipment, handheld equipment, medical monitoring equipment and other fields Main Features: 1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;
